The Mirackle® M5 is a high resolution video panel from Mirackle®. Each panel has a pixel pitch of 5mm with a configuration of a 3-in-1 RGB SMD2020 LED.

Mirackle® offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.

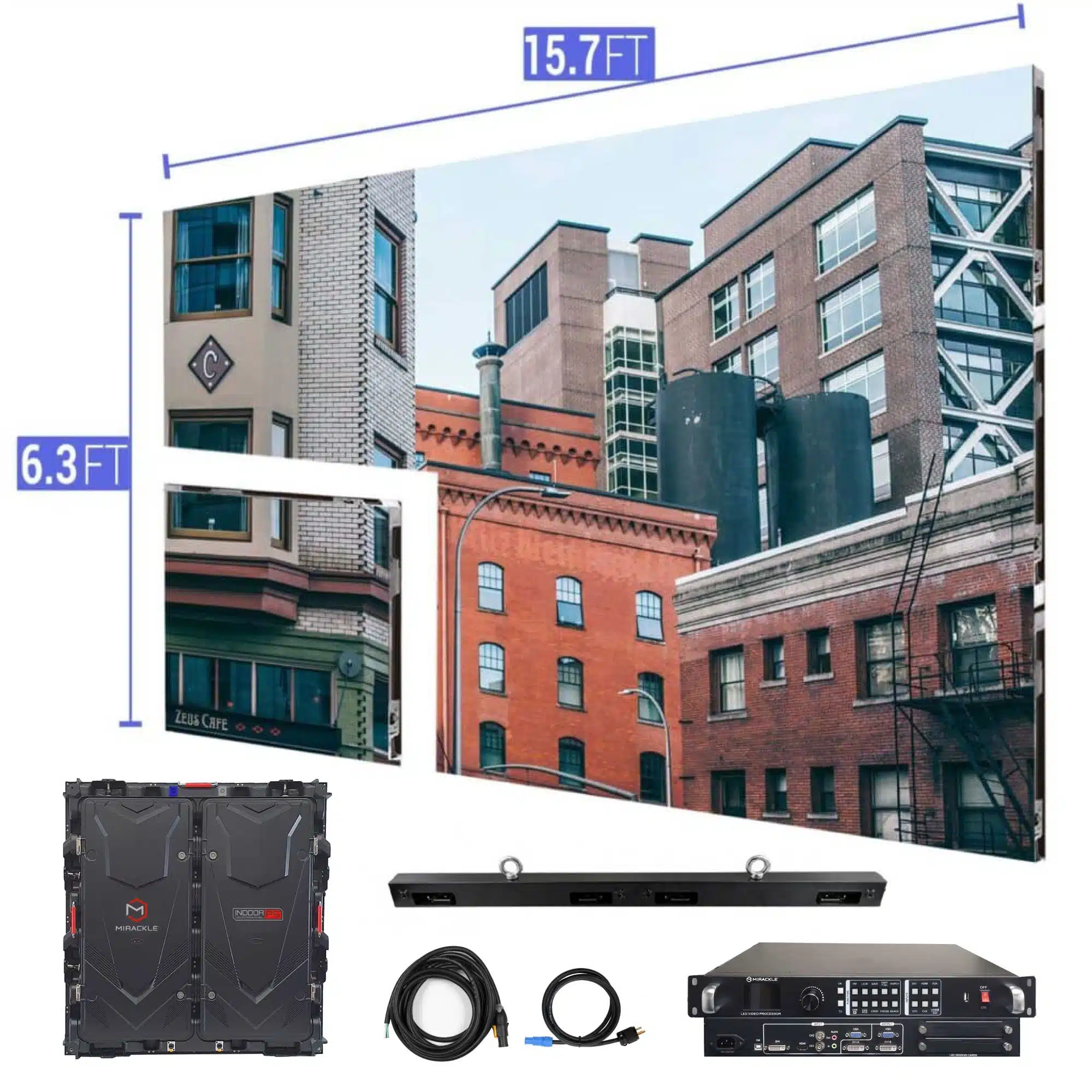

Big LED Screen Display 15.6′ x 6.3′ P5mm Indoor

Within the wide P5mm line, this 10-mosaic Led Video Wall arises to create a modern screen of 2 by 5 panels, and thus generate visual impact not only from the excellent quality of the image but also from its landscape appearance, designed to transmit original content.

A transgressive differential

In addition to being disruptive from its shape 5:2 aspect ratio, this Led Video Wall 15.6 ′ x 6.3 ′ P5mm Indoor is ideal for transmitting video in modern formats. It is also perfect for spacious dimensions, such as a large room in width, where your stage allows you to play with a screen that extends to the left and right, but due to its low ceiling does not allow vertical configurations.

Unmatched visual effects

Thanks to its high quality, this led wall allows you to create visual effects and due to its 5mm pixel pitch, its optimal viewing distance is 15 feet, or 5 meters, with a perfect viewing angle of 140 ° horizontal and 140 ° vertical. Houses of worship or churches are greatly benefited by having this superior technology class allowing them to more effectively reach their audience with background images or projections that serve to enhance their services.

Efficient and economical

With a maximum consumption of 425 W per panel, this screen has free shipping throughout the country, a 3-year warranty included, the best after-sales service with 24/7 attention that provides all the information, and also includes spare parts to extend its duration. In the event of a pixel failure, the module is removed and easily replaced.



Download full specifications here

Key Features:

  • Turn-key solution
  • Easy installation
  • Ground support compatible (sold separately here)
  • Technical support available
  • 3 years warranty included for all parts
  • USA based
  • In stock

Package Includes:

  • (10) NovaStar P5mm Indoor LED video tiles
  • (1) Video Processor with HDMI, DVI and VGA Inputs
  • (1) NovaStar Mctrl300 sending card
  • (5) Hanging bars for rigging
  • (1) Cat6 25ft cable
  • (10) Data Cat6 link cables
  • (10) Locking Power Link Cables
  • (2) Locking Power to Edison Cables
  • Spare parts included

Specs:

  • Pixel Pitch: 5mm
  • LED Configuration: 3-in-1 SMD2121 LED
  • Pixel Density: 192 x 192 per panel
  • Size: 37.8” x 37.8” x 3.5” / 960 x 960 x 88mm
  • Module Quantity: 18 per panel 320 x 160mm
  • Weight: 62lbs. / 30.9Kg

Optical Ratings:

  • Brightness: 3500 NITS
  • View Angle: Horizontal 140°/Vertical 140°
  • Distance: 16ft.
  • Brightness Adjustment: 0~100% 100 Levels

Power Supply:

  • Operation Power: 100~240V 50-60Hz
  • Max. Power Consumption: 425W/per panel
  • Ave. Power Consumption: 240W/per panel
  • Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

  • Control Mode: NovaStar Synchronous System with Control via DVI
  • Frame Update Frequency: 50-60Hz
  • Scan Mode: 1/16
  • Refresh Rate: 3840Hz
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
  • Brightness Correction: Pixel, Module, Cabinet

Environmental:

  • Operating Life: 100,000 Hours
  • Protection Level: IP45 (Front and Back)
Sale!

LED Video Wall 15.6′ x 6.3′ P5mm Indoor for Church and House of Worship

$14,195.00

SKU: p5003-1 Category: ,

The Mirackle® M5 is a high resolution video panel from Mirackle®. Each panel has a pixel pitch of 5mm with a configuration of a 3-in-1 RGB SMD2020 LED.

Mirackle® offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.


Big LED Screen Display 15.6′ x 6.3′ P5mm Indoor

Within the wide P5mm line, this 10-mosaic Led Video Wall arises to create a modern screen of 2 by 5 panels, and thus generate visual impact not only from the excellent quality of the image but also from its landscape appearance, designed to transmit original content.

A transgressive differential

In addition to being disruptive from its shape 5:2 aspect ratio, this Led Video Wall 15.6 ′ x 6.3 ′ P5mm Indoor is ideal for transmitting video in modern formats. It is also perfect for spacious dimensions, such as a large room in width, where your stage allows you to play with a screen that extends to the left and right, but due to its low ceiling does not allow vertical configurations.

Unmatched visual effects

Thanks to its high quality, this led wall allows you to create visual effects and due to its 5mm pixel pitch, its optimal viewing distance is 15 feet, or 5 meters, with a perfect viewing angle of 140 ° horizontal and 140 ° vertical. Houses of worship or churches are greatly benefited by having this superior technology class allowing them to more effectively reach their audience with background images or projections that serve to enhance their services.

Efficient and economical

With a maximum consumption of 425 W per panel, this screen has free shipping throughout the country, a 3-year warranty included, the best after-sales service with 24/7 attention that provides all the information, and also includes spare parts to extend its duration. In the event of a pixel failure, the module is removed and easily replaced.



Download full specifications here

Key Features:

  • Turn-key solution
  • Easy installation
  • Ground support compatible (sold separately here)
  • Technical support available
  • 3 years warranty included for all parts
  • USA based
  • In stock

Package Includes:

  • (10) NovaStar P5mm Indoor LED video tiles
  • (1) Video Processor with HDMI, DVI and VGA Inputs
  • (1) NovaStar Mctrl300 sending card
  • (5) Hanging bars for rigging
  • (1) Cat6 25ft cable
  • (10) Data Cat6 link cables
  • (10) Locking Power Link Cables
  • (2) Locking Power to Edison Cables
  • Spare parts included

Specs:

  • Pixel Pitch: 5mm
  • LED Configuration: 3-in-1 SMD2121 LED
  • Pixel Density: 192 x 192 per panel
  • Size: 37.8” x 37.8” x 3.5” / 960 x 960 x 88mm
  • Module Quantity: 18 per panel 320 x 160mm
  • Weight: 62lbs. / 30.9Kg

Optical Ratings:

  • Brightness: 3500 NITS
  • View Angle: Horizontal 140°/Vertical 140°
  • Distance: 16ft.
  • Brightness Adjustment: 0~100% 100 Levels

Power Supply:

  • Operation Power: 100~240V 50-60Hz
  • Max. Power Consumption: 425W/per panel
  • Ave. Power Consumption: 240W/per panel
  • Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

  • Control Mode: NovaStar Synchronous System with Control via DVI
  • Frame Update Frequency: 50-60Hz
  • Scan Mode: 1/16
  • Refresh Rate: 3840Hz
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
  • Brightness Correction: Pixel, Module, Cabinet

Environmental:

  • Operating Life: 100,000 Hours
  • Protection Level: IP45 (Front and Back)
