Church & House of Worship LED Screen Display 9.45′ x 6.4′ P5mm Indoor

This Turn-key package is designed for houses of worship and churches who want an easy solution to install and LED Video Wall. The P5mm panels provide a mix of fine pixel pitch, color uniformity, brightness and reliability. Characteristics like high refresh rate, NovaStar systems and the newest LED lamps make these panels one of the best in the market.

Download full specifications here

Key Features:

  • NovaStar System
  • Full Front Service with Magnetic Modules
  • Turn-key solution specially designed for churches
  • The simplest and fastest installation (it is not necessary to be an expert to install the led wall)
  • Ground support for led wall compatible (follow this link to add a ground support)
  • Technical support available to guide and advise you
  • 3 years warranty included for all parts
  • We are a USA based company
  • In stock now

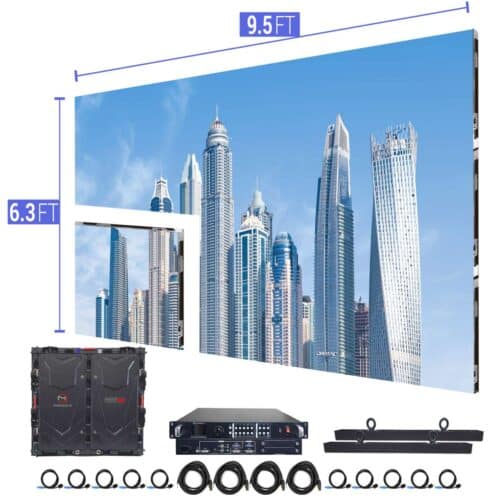

Package Includes:

  • (6) NovaStar P5mm Indoor LED video tiles
  • (1) Video Processor with HDMI, DVI and VGA Inputs
  • (1) NovaStar Mctrl300 sending card
  • (3) Hanging bars for rigging
  • (1) Cat6 25ft cable
  • (6) Data Cat6 link cables
  • (6) Locking Power Link Cables
  • (2) Locking Power to Edison Cables
  • Spare parts included

Specs:

  • Pixel Pitch: 5mm
  • LED Configuration: 3-in-1 SMD2121 LED
  • Pixel Density: 192 x 192 per panel
  • Size: 37.8” x 37.8” x 3.5” / 960 x 960 x 88mm
  • Module Quantity: 18 per panel 320 x 160mm
  • Weight: 62lbs. / 30.9Kg

Optical Ratings:

  • Brightness: 3500 NITS
  • View Angle: Horizontal 140°/Vertical 140°
  • Distance: 16ft.
  • Brightness Adjustment: 0~100% 100 Levels

Power Supply:

  • Operation Power: 100~240V 50-60Hz
  • Max. Power Consumption: 425W/per panel
  • Ave. Power Consumption: 240W/per panel
  • Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

  • Control Mode: NovaStar Synchronous System with Control via DVI
  • Frame Update Frequency: 50-60Hz
  • Scan Mode: 1/16
  • Refresh Rate: 3840Hz
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
  • Brightness Correction: Pixel, Module, Cabinet

Environmental

  • Operating Life: 100,000 Hours
  • Protection Level: IP45 (Front and Back)
