The Mirackle® is a high resolution video panel from Mirackle®. Each panel has a pixel pitch of 2.97mm with a configuration of a 3-in-1 RGB SMD2020 LED.

Mirackle® offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.

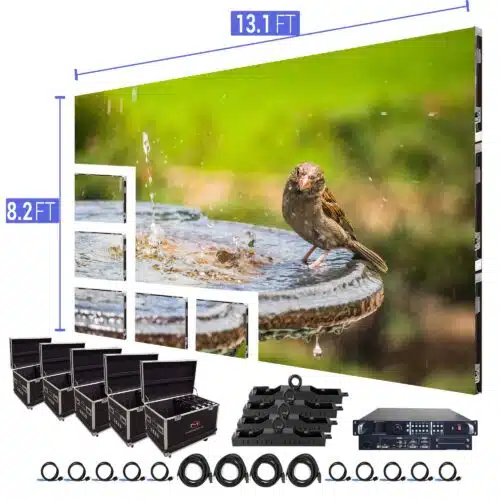

Big LED Screen Display 13.1′ x 8.2′ P2.97mm

This product, one of the medium-sized in the P2.97mm Indoor category, contains 40 panels that make up an 8 by 5 mosaic led video screen. Oriented for churches and houses of worship, these led panels are perfect for live broadcasting thanks at its 3840 Hz refresh rate which prevents the image from losing resolution, thus ensuring high quality, brightness and color uniformity.

Perfect viewing angles

All houses of worship will appreciate having this technological solution as it takes each ceremony to another level. The Indoor Led Video Wall Screen 13.1 ′ x 8.2 ′ P2.97mm adds rhythm to sermons, making it ideal for churches wishing to deepen their bond with their followers. It also ensures that none of the attendees miss a single frame of the transmission, since due to its fine pitch between pixels of 2.97mm it has an optimal display of 8 feet and due to its angle of 140 ° vertical and 140 ° horizontal, the vision is perfect from any location.

Savings and adaptability

Each of its panels has an average energy consumption of 50 W, which together with its useful life of 100,000 hours makes this led screen really very economical. For the total price of the package, you also get the turnkey solution service, that is, the product is delivered ready to be used. Hanging rigging bars are also included and, as it is compatible with ground support, this screen is suitable for any type of scenario.

Warranty and free shipping

Other services included are the 3-year warranty on all its parts and free shipping to all states in the country. In addition, in the event of any eventuality, there is a 24/7 after-sales technical service.

Download full specifications here

Key Features:

  • Full Front Service / Magnetic Modules
  • Turn-key solution
  • Easy installation
  • Ground support compatible (sold separately here)
  • Technical support available
  • 3 years warranty included for all parts
  • USA based
  • In stock

Package Includes:

  • (40) NovaStar P2.97mm Indoor LED video tiles
  • (1) Video Processor with HDMI, DVI and VGA Inputs
  • (1) NovaStar Mctrl300 sending card
  • (4) Hanging bars for rigging
  • (2) Cat6 25ft cable
  • (40) Data Cat6 link cables
  • (40) Locking Power Link Cables
  • (2) Locking Power to Edison Cables
  • Spare parts included

Specs:

  • Pixel Pitch: 2.97mm
  • Full Front Service / Magnetic Modules
  • LED Configuration: 3-in-1 SMD2121 LED
  • Pixel Density: 168 x 168 per panel
  • Size: 19.68” x 19.68” x 3” / 500 x 500 x 75mm
  • Module Quantity: 4 per panel 250 x 250mm
  • Weight: 18lbs. / 8.16Kg

Optical Ratings:

  • Brightness: 1500 NITS
  • View Angle: Horizontal 140°/Vertical 140°
  • Distance: 6ft.
  • Brightness Adjustment: 0~100% 100 Levels

Power Supply:

  • Operation Power: 100~240V 50-60Hz
  • Max. Power Consumption: 100W/per panel
  • Ave. Power Consumption: 50W/per panel
  • Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

  • Control Mode: NovaStar Synchronous System with Control via DVI
  • Frame Update Frequency: 50-60Hz
  • Scan Mode: 1/28
  • Refresh Rate: 3840Hz
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
  • Brightness Correction: Pixel, Module, Cabinet

Environmental:

  • Operating Life: 100,000 Hours
  • Protection Level: IP45 (Front and Back)
Sale!

LED Video Wall Screen 13.1' x 8.2' P2.97mm Indoor Turn-key

$23,199.00

SKU: P2972-1 Category: ,

The Mirackle® is a high resolution video panel from Mirackle®. Each panel has a pixel pitch of 2.97mm with a configuration of a 3-in-1 RGB SMD2020 LED.

Mirackle® offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.


Big LED Screen Display 13.1′ x 8.2′ P2.97mm

This product, one of the medium-sized in the P2.97mm Indoor category, contains 40 panels that make up an 8 by 5 mosaic led video screen. Oriented for churches and houses of worship, these led panels are perfect for live broadcasting thanks at its 3840 Hz refresh rate which prevents the image from losing resolution, thus ensuring high quality, brightness and color uniformity.

Perfect viewing angles

All houses of worship will appreciate having this technological solution as it takes each ceremony to another level. The Indoor Led Video Wall Screen 13.1 ′ x 8.2 ′ P2.97mm adds rhythm to sermons, making it ideal for churches wishing to deepen their bond with their followers. It also ensures that none of the attendees miss a single frame of the transmission, since due to its fine pitch between pixels of 2.97mm it has an optimal display of 8 feet and due to its angle of 140 ° vertical and 140 ° horizontal, the vision is perfect from any location.

Savings and adaptability

Each of its panels has an average energy consumption of 50 W, which together with its useful life of 100,000 hours makes this led screen really very economical. For the total price of the package, you also get the turnkey solution service, that is, the product is delivered ready to be used. Hanging rigging bars are also included and, as it is compatible with ground support, this screen is suitable for any type of scenario.

Warranty and free shipping

Other services included are the 3-year warranty on all its parts and free shipping to all states in the country. In addition, in the event of any eventuality, there is a 24/7 after-sales technical service.

Download full specifications here

Key Features:

  • Full Front Service / Magnetic Modules
  • Turn-key solution
  • Easy installation
  • Ground support compatible (sold separately here)
  • Technical support available
  • 3 years warranty included for all parts
  • USA based
  • In stock

Package Includes:

  • (40) NovaStar P2.97mm Indoor LED video tiles
  • (1) Video Processor with HDMI, DVI and VGA Inputs
  • (1) NovaStar Mctrl300 sending card
  • (4) Hanging bars for rigging
  • (2) Cat6 25ft cable
  • (40) Data Cat6 link cables
  • (40) Locking Power Link Cables
  • (2) Locking Power to Edison Cables
  • Spare parts included

Specs:

  • Pixel Pitch: 2.97mm
  • Full Front Service / Magnetic Modules
  • LED Configuration: 3-in-1 SMD2121 LED
  • Pixel Density: 168 x 168 per panel
  • Size: 19.68” x 19.68” x 3” / 500 x 500 x 75mm
  • Module Quantity: 4 per panel 250 x 250mm
  • Weight: 18lbs. / 8.16Kg

Optical Ratings:

  • Brightness: 1500 NITS
  • View Angle: Horizontal 140°/Vertical 140°
  • Distance: 6ft.
  • Brightness Adjustment: 0~100% 100 Levels

Power Supply:

  • Operation Power: 100~240V 50-60Hz
  • Max. Power Consumption: 100W/per panel
  • Ave. Power Consumption: 50W/per panel
  • Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

  • Control Mode: NovaStar Synchronous System with Control via DVI
  • Frame Update Frequency: 50-60Hz
  • Scan Mode: 1/28
  • Refresh Rate: 3840Hz
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
  • Brightness Correction: Pixel, Module, Cabinet

Environmental:

  • Operating Life: 100,000 Hours
  • Protection Level: IP45 (Front and Back)
