LED Video Wall Outdoor 12.6′ x 6.3′ P5mm Turn-key - LED nation
LED-Video-Wall-for-House-of-Worship-12.6′-6.3’-P5mm-Outdoor

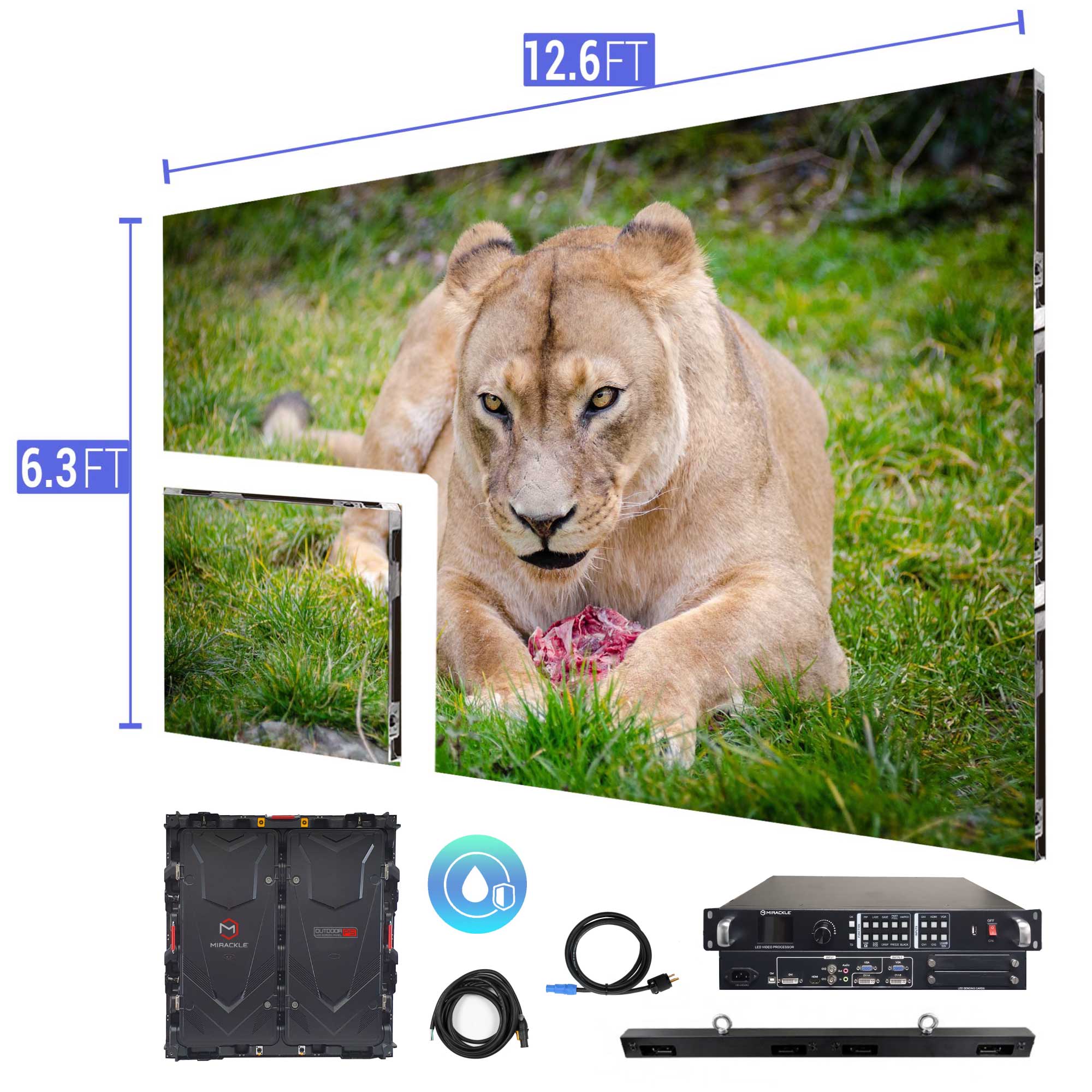

LED Video Wall Outdoor 12.6′ x 6.3′ P5mm Turn-key

$13,999.00

SKU: P5OUT12X6 Category: ,
↓ 7%

Standard LED Screen Display Panels 12.6′ x 6.3′ P5mm Outdoor

Another model that is booming in the technology market is the 12.6 ′ x 6.3 ′ P5mm outdoor LED video wall, since its innovative landscape design is ideal for open centers of religious worship or outdoor work meetings. The P5 is specifically designed for large outdoor congregations or events, and provides an incredible high resolution image quality with powerful brightness over a considerable distance. Its price point is highly competitive, when compared to prior models. Such a package is the perfect fit, when frugality and practicality are the priority.



The right panels

This product has 8 video tiles, arranged in a 4×2 dimension and each of them has a pixel density of 192×192, ideal for reproducing any audiovisual content in places with ample space. The distance between the viewer and the screen must be at least 16 feet, thus a high quality viewing experience over a considerable distance is guaranteed. Additionally, it comes with IP65 rain resistance – providing additional protection and durability, even in the toughest weather conditions.

Size is imperative

This product has a 2:1 aspect ratio, offering a panoramic viewport with balanced proportions. Each viewer will have an optimum viewing experience from almost every point in the area. By extension, most – if not all – of your audience will be deeply engaged, and immersed in said event.

Download full specifications here

Key Features:

  • IP65 Rated
  • Turn-key solution
  • Easy installation
  • Ground support compatible (sold separately here)
  • Technical support available
  • 3 years warranty included for all parts
  • USA based
  • In stock

Package Includes:

  • (8) NovaStar P5mm Outdoor LED video tiles
  • (1) Video Processor with HDMI, DVI and VGA Inputs
  • (1) NovaStar Mctrl300 sending card
  • (4) Hanging bars for rigging
  • (1) Cat6 25ft cable
  • (8) Data Cat6 link cables
  • (8) Locking Power Link Cables
  • (2) Locking Power to Edison Cables
  • Spare parts included

Specs:

  • Pixel Pitch: 5mm
  • LED Configuration: 3-in-1 SMD2121 LED
  • Pixel Density: 192 x 192 per panel
  • Size: 37.8” x 37.8” x 3.5” / 960 x 960 x 88mm
  • Module Quantity: 18 per panel 320 x 160mm
  • Weight: 62lbs. / 30.9Kg

Optical Ratings:

  • Brightness: 5500 NITS
  • View Angle: Horizontal 140°/Vertical 140°
  • Distance: 16ft.
  • Brightness Adjustment: 0~100% 100 Levels

Power Supply:

  • Operation Power: 100~240V 50-60Hz
  • Max. Power Consumption: 425W/per panel
  • Ave. Power Consumption: 240W/per panel
  • Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

  • Control Mode: NovaStar Synchronous System with Control via DVI
  • Frame Update Frequency: 50-60Hz
  • Scan Mode: 1/16
  • Refresh Rate: 3840Hz
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
  • Brightness Correction: Pixel, Module, Cabinet

Environmental:

  • Operating Life: 100,000 Hours
  • Protection Level: IP65 (Front and Back)
