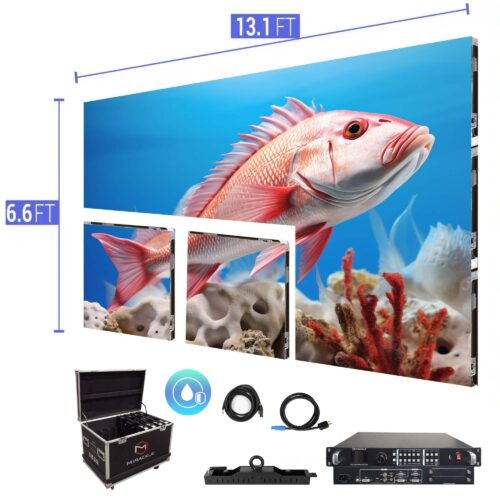

LED Video Wall Outdoor 13.1′ x 6.6′ P2.97mm Turn-key


SKU: P39OUT13X6-1 Category: ,

Standard LED Screen Display Panels 13.1′ x 6.6′ P2.97mm Outdoor

With 40 tiles, the 13.1’ x 6.6’ outdoor LED wall sets the example as one of the most exclusive and advanced displays on the market. This product has an aspect ratio of 2:1. Its pixel pitch of 2.9mm, or distance between pixels – stipulates an optimal viewing distance of at least 8 ft or 2.4 m. The P2.97 is best deployed for churches, houses of worship and even trade shows, where the audience is viewing the screen at a distance. The maximum brightness rating for this system is 4000 NITs, which ensures clear reception of transmitted visuals at an extended distance. Not to mention its IP65 rain protection, makes it incredibly durable.


Download full specifications here

Key Features:

  • IP65 Rated
  • Turn-key solution
  • Easy installation
  • Ground support compatible (sold separately here)
  • Technical support available
  • 24 month warranty included for all parts
  • USA based
  • In stock

Package Includes:

  • (32) NovaStar P2.97mm Outdoor LED video tiles
  • (1) Video Processor with HDMI, DVI and VGA Inputs
  • (1) NovaStar Mctrl300 sending card
  • (4) Hanging bars for rigging
  • (1) Cat6 25ft cable
  • (32) Data Cat6 link cables
  • (32) Locking Power Link Cables
  • (2) Locking Power to Edison Cables
  • Spare parts included


  • Pixel Pitch: 2.97mm
  • LED Configuration: 3-in-1 SMD1415 LED
  • Pixel Density: 168 x 168 per panel
  • Size:19.68” x 19.68” x 3” / 500 x 500 x 75mm
  • Module Quantity: 4 per panel 250 x 250mm
  • Weight:  7.5Kg

Optical Ratings:

  • Brightness: 4000 NITS
  • View Angle: Horizontal 140°/Vertical 140°
  • Distance: 8ft. (2.4m)
  • Brightness Adjustment: 0~100% 100 Levels

Power Supply:

  • Operation Power: 100~240V 50-60Hz
  • Max. Power Consumption: 200W/per panel
  • Ave. Power Consumption: 130W/per panel
  • Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

  • Control Mode: NovaStar Synchronous System with Control via DVI
  • Frame Update Frequency: 50-60Hz
  • Scan Mode: 1/21
  • Refresh Rate: 3840Hz
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
  • Brightness Correction: Pixel, Module, Cabinet


  • Operating Life: 100,000 Hours
  • Protection Level: IP65 (Front and Back)
