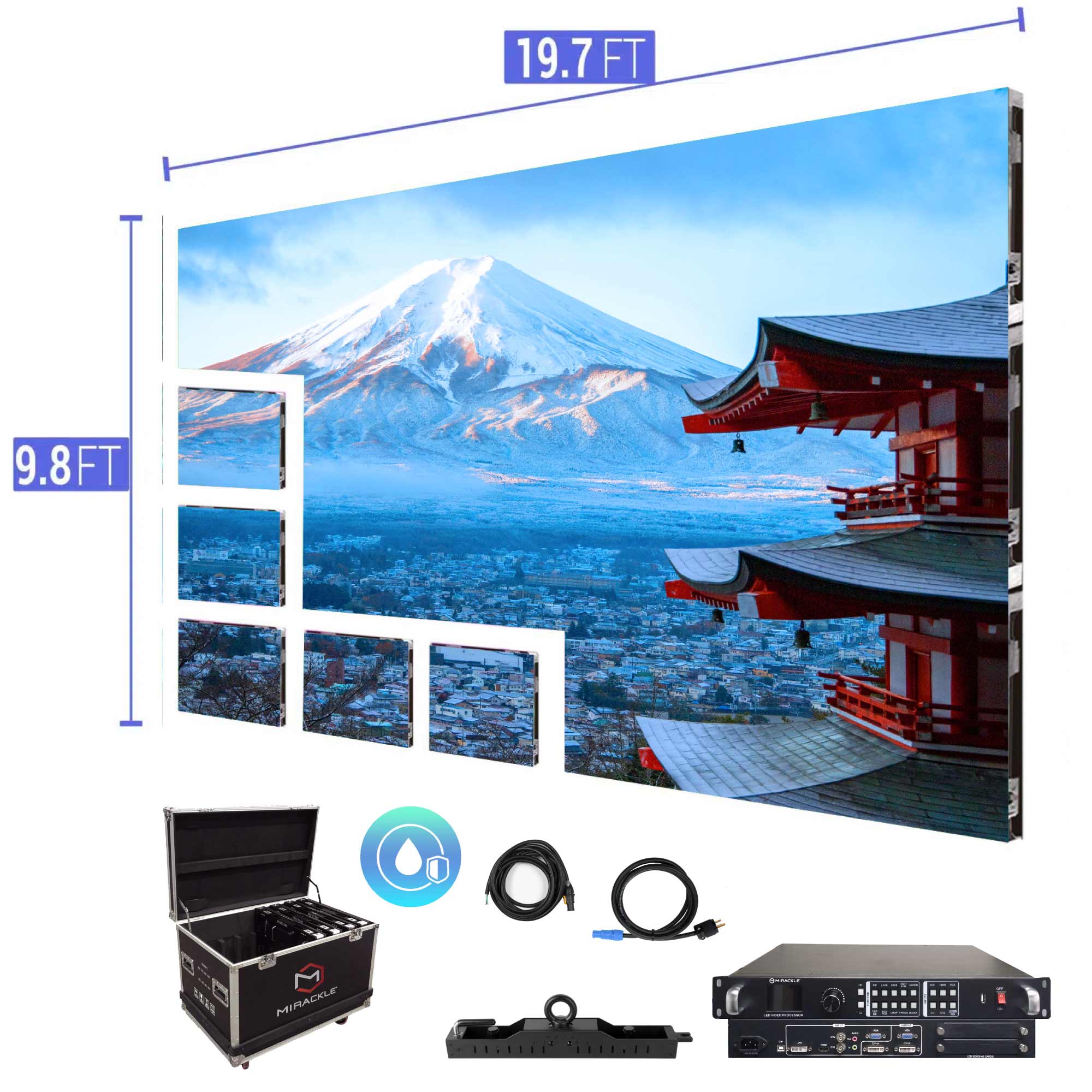

Medium LED Screen Display 19.7′ x 9.8′ P2.97mm Outdoor
The 19.7′ x 9.8’ outdoor LED video wall is one of our most highly recommended packages for outdoor digital signage use – due to its 72 incredible (12×6) panels. Its size is ideal for keeping capturing and maintaining the audience’s attention. Its aspect ratio is 1:2, ideal for displaying any photograph or video advertisement on public roads, venues, concerts, expositions and more! The P2.97 is often best deployed for churches, houses of worship and trade shows, where the audience is viewing the screen at a distance. Additionally, it brings an unmatched brightness rating of 4000 NITs. Also, its IP65 rain protection makes it incredibly durable and versatile for all environments.
Download full specifications here
Key Features:
- IP65 Rated
- Turn-key solution
- Easy installation
- Ground support compatible (sold separately here)
- Technical support available
- 24 month warranty included for all parts
- USA based
- In stock
Package Includes:
- (72) NovaStar P2.97mm Outdoor LED video tiles
- (1) Video Processor with HDMI, DVI and VGA Inputs
- (1) NovaStar Mctrl300 sending card
- (6) Hanging bars for rigging
- (2) Cat6 25ft cable
- (72) Data Cat6 link cables
- (72) Locking Power Link Cables
- (4) Locking Power to Edison Cables
- Spare parts included
Specs:
- Pixel Pitch: 2.97mm
- LED Configuration: 3-in-1 SMD1415 LED
- Pixel Density: 168 x 168 per panel
- Size: 19.68” x 19.68” x 3” / 500 x 500 x 75mm
- Module Quantity: 4 per panel 250 x 250mm
- Weight: 7.5Kg
Optical Ratings:
- Brightness: 4000 NITS
- View Angle: Horizontal 140°/Vertical 140°
- Distance: 8ft. (2.4m)
- Brightness Adjustment: 0~100% 100 Levels
Power Supply:
- Operation Power: 100~240V 50-60Hz
- Max. Power Consumption: 200W/per panel
- Ave. Power Consumption: 130W/per panel
- Connections Power/Data: Locking power In/Out; Data EtherCon In/Out
Control System:
- Control Mode: NovaStar Synchronous System with Control via DVI
- Frame Update Frequency: 50-60Hz
- Scan Mode: 1/21
- Refresh Rate: 3840Hz
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Brightness Correction: Pixel, Module, Cabinet
Environmental:
- Operating Life: 100,000 Hours
- Protection Level: IP65 (Front and Back)
