The Mirackle® is a high resolution video panel from Mirackle®. Each panel has a pixel pitch of 2.97mm with a configuration of a 3-in-1 RGB SMD2020 LED.

Mirackle® offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.

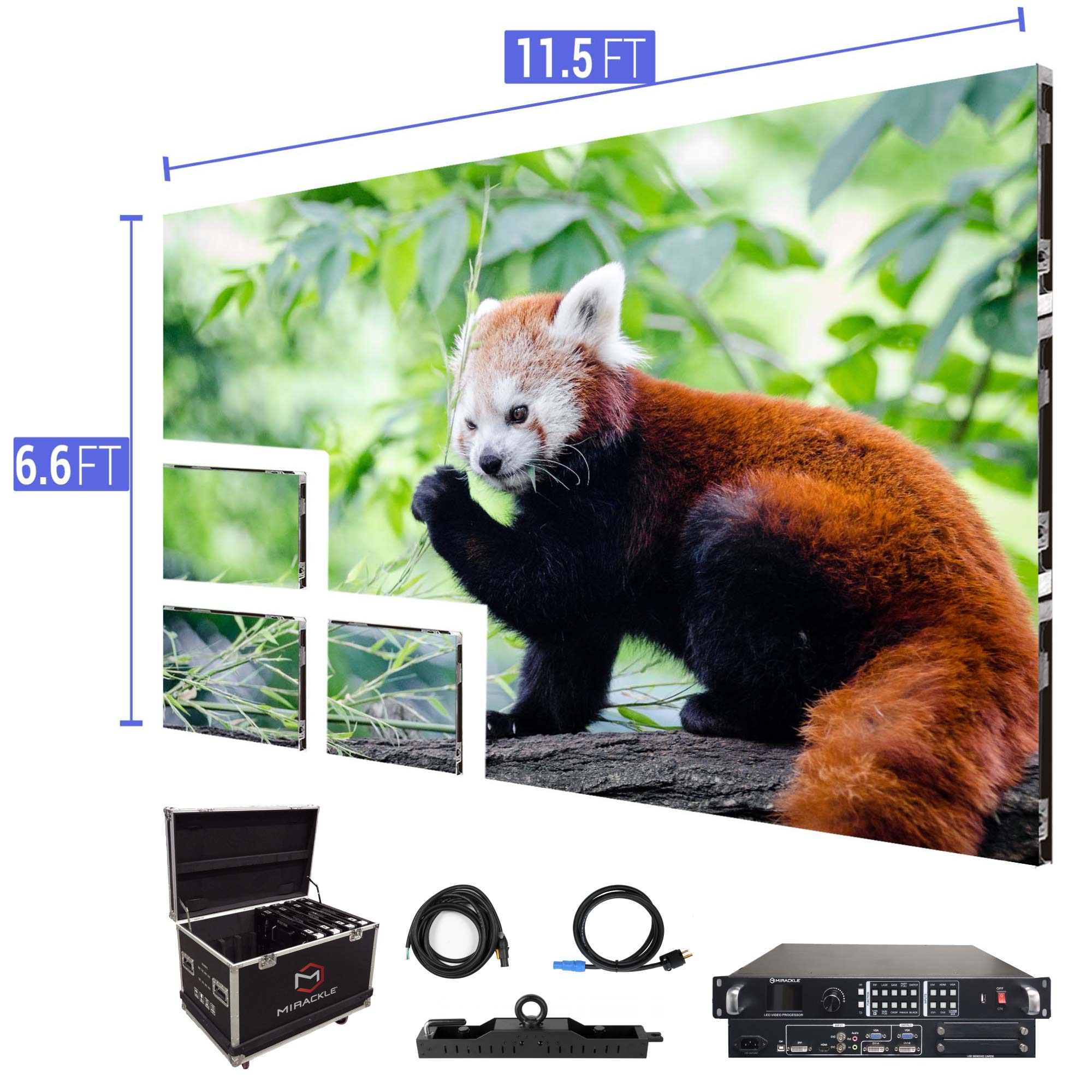

Big LED Screen Display 11.5′ x 6.6′ P2.97mm

Within the P2.97mm category for interiors appears this led video wall that from its 28 panels forms a wonderful led screen of 7 by 4 tiles. Its image quality, with high resolution and uniformity of tones is possible due to its high technology, perfect to enhance all kinds of ceremony, reunion, or birthday party.

Upgrade your sanctuary

All houses of worship and churches that wish to give a modern twist to their sermons to attract the attention of the youngest and engage their congregation with a clear and direct message of faith, must have the Led Video Wall Screen 11.5 ′ x 6.6 ′ P2.97mm Indoor. It is highly cost-effective and efficient: its energy consumption is low with a maximum of 100 W per panel and its useful life is 100,000 hours. Due to its magnetic modules and its light weight, it is extremely malleable and easy to transport, it is also adaptable to any type of stage thanks to being compatible with ground support.

Superior technology with installation included

With a pitch between pixels of 2.97mm, the led video wall allows optimal viewing from 8 feet away, approximately 3 meters. And due to its 3840 Hz refresh rate, it is ideal for live broadcasts without losing image quality. In addition, due to its angle of 140 ° vertical and 140 ° horizontal, the entire auditorium will have a perfect view of the screen from any location.

Maximum services

This product has the Turnkey Solution service so it is delivered ready to use, without having to worry about extra costs for installation. It also includes a 3-year warranty and free shipping to all states in the USA. In the event of any eventuality, it has a 24/7 after-sales telephone technical service.

Download full specifications here

Key Features:

  • Full Front Service / Magnetic Modules
  • Turn-key solution
  • Easy installation
  • Ground support compatible (sold separately here)
  • Technical support available
  • 3 years warranty included for all parts
  • USA based
  • In stock

Package Includes:

  • (28) NovaStar P2.97mm Indoor LED video tiles
  • (1) Video Processor with HDMI, DVI and VGA Inputs
  • (1) NovaStar Mctrl300 sending card
  • (4) Hanging bars for rigging
  • (2) Cat6 25ft cable
  • (28) Data Cat6 link cables
  • (28) Locking Power Link Cables
  • (2) Locking Power to Edison Cables
  • Spare parts included

Specs:

  • Pixel Pitch: 2.97mm
  • Full Front Service / Magnetic Modules
  • LED Configuration: 3-in-1 SMD2121 LED
  • Pixel Density: 168 x 168 per panel
  • Size: 19.68” x 19.68” x 3” / 500 x 500 x 75mm
  • Module Quantity: 4 per panel 250 x 250mm
  • Weight: 18lbs. / 8.16Kg

Optical Ratings:

  • Brightness: 1500 NITS
  • View Angle: Horizontal 140°/Vertical 140°
  • Distance: 6ft.
  • Brightness Adjustment: 0~100% 100 Levels

Power Supply:

  • Operation Power: 100~240V 50-60Hz
  • Max. Power Consumption: 100W/per panel
  • Ave. Power Consumption: 50W/per panel
  • Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

  • Control Mode: NovaStar Synchronous System with Control via DVI
  • Frame Update Frequency: 50-60Hz
  • Scan Mode: 1/28
  • Refresh Rate: 3840Hz
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
  • Brightness Correction: Pixel, Module, Cabinet

Environmental:

  • Operating Life: 100,000 Hours
  • Protection Level: IP45 (Front and Back)
Sale!

LED Video Wall Screen 11.5' x 6.6' P2.97mm Indoor Turn-key

$16,599.00

SKU: P2972-2 Category: ,

The Mirackle® is a high resolution video panel from Mirackle®. Each panel has a pixel pitch of 2.97mm with a configuration of a 3-in-1 RGB SMD2020 LED.

Mirackle® offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.


Big LED Screen Display 11.5′ x 6.6′ P2.97mm

Within the P2.97mm category for interiors appears this led video wall that from its 28 panels forms a wonderful led screen of 7 by 4 tiles. Its image quality, with high resolution and uniformity of tones is possible due to its high technology, perfect to enhance all kinds of ceremony, reunion, or birthday party.

Upgrade your sanctuary

All houses of worship and churches that wish to give a modern twist to their sermons to attract the attention of the youngest and engage their congregation with a clear and direct message of faith, must have the Led Video Wall Screen 11.5 ′ x 6.6 ′ P2.97mm Indoor. It is highly cost-effective and efficient: its energy consumption is low with a maximum of 100 W per panel and its useful life is 100,000 hours. Due to its magnetic modules and its light weight, it is extremely malleable and easy to transport, it is also adaptable to any type of stage thanks to being compatible with ground support.

Superior technology with installation included

With a pitch between pixels of 2.97mm, the led video wall allows optimal viewing from 8 feet away, approximately 3 meters. And due to its 3840 Hz refresh rate, it is ideal for live broadcasts without losing image quality. In addition, due to its angle of 140 ° vertical and 140 ° horizontal, the entire auditorium will have a perfect view of the screen from any location.

Maximum services

This product has the Turnkey Solution service so it is delivered ready to use, without having to worry about extra costs for installation. It also includes a 3-year warranty and free shipping to all states in the USA. In the event of any eventuality, it has a 24/7 after-sales telephone technical service.

Download full specifications here

Key Features:

  • Full Front Service / Magnetic Modules
  • Turn-key solution
  • Easy installation
  • Ground support compatible (sold separately here)
  • Technical support available
  • 3 years warranty included for all parts
  • USA based
  • In stock

Package Includes:

  • (28) NovaStar P2.97mm Indoor LED video tiles
  • (1) Video Processor with HDMI, DVI and VGA Inputs
  • (1) NovaStar Mctrl300 sending card
  • (4) Hanging bars for rigging
  • (2) Cat6 25ft cable
  • (28) Data Cat6 link cables
  • (28) Locking Power Link Cables
  • (2) Locking Power to Edison Cables
  • Spare parts included

Specs:

  • Pixel Pitch: 2.97mm
  • Full Front Service / Magnetic Modules
  • LED Configuration: 3-in-1 SMD2121 LED
  • Pixel Density: 168 x 168 per panel
  • Size: 19.68” x 19.68” x 3” / 500 x 500 x 75mm
  • Module Quantity: 4 per panel 250 x 250mm
  • Weight: 18lbs. / 8.16Kg

Optical Ratings:

  • Brightness: 1500 NITS
  • View Angle: Horizontal 140°/Vertical 140°
  • Distance: 6ft.
  • Brightness Adjustment: 0~100% 100 Levels

Power Supply:

  • Operation Power: 100~240V 50-60Hz
  • Max. Power Consumption: 100W/per panel
  • Ave. Power Consumption: 50W/per panel
  • Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

  • Control Mode: NovaStar Synchronous System with Control via DVI
  • Frame Update Frequency: 50-60Hz
  • Scan Mode: 1/28
  • Refresh Rate: 3840Hz
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
  • Brightness Correction: Pixel, Module, Cabinet

Environmental:

  • Operating Life: 100,000 Hours
  • Protection Level: IP45 (Front and Back)
