This LED screen is made up of 28 tiles, granting a wider surface area than its previous model, achieving an aspect ratio of 7:4.

This LED screen is made up of 28 tiles, granting a wider surface area than its previous model,
achieving an aspect ratio of 7:4.

Its multiple and varied utility, as well as its benefits, make it a great technological solution when it comes to communicating a message effectively.

Its multiple and varied utility, as well as its benefits, make it a great technological solution
when it comes to communicating a message effectively.

VIEW DISTANCE

RECEIVING CARD

MRV208-1 NovaStar 3840 Hz

By NovaStar, single MRV208-1
supports resolutions up to
256×256@60Hz. Supporting various
functions, can significantly improve
the display effect and user experience.

Full front serviceable

Magnetic Modules

Easily removable

magnetic module system

To simplify assembly, repair or
replacement of components.
They can be removed with a special
tool or manually of components.

Easily removable

magnetic module system

To simplify assembly, repair or replacement of.
They can be removed with a special tool or manually of components.

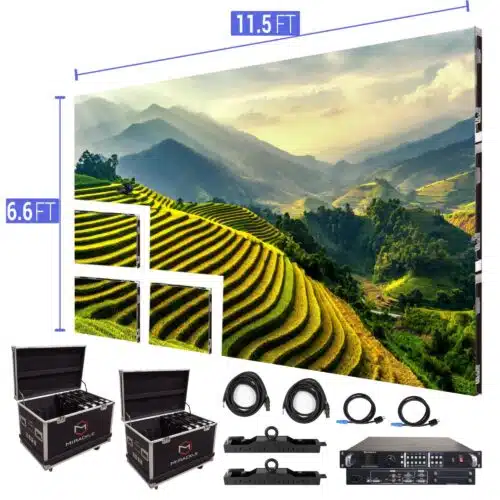

LED-Video-Wall-11.5′-6.6′-P3.91mm-Indoor

Maximum visual impact

By generating great impact, the Indoor LED Video Wall Screen 11.5 ‘x 6.6’ P3.91mm enhances the user’s experience colors, motion and sharp image quality, which is why it is so attractive for all types of companies. Its distance between pixels is 3.91mm, which stipulates that the public must be located at 15 feet for optimal viewing, this requirement is important to take into account when considering the available space. This LED screen is ideal for a church that wants to improve its congregation’s experience with high technology which will help engage the audience on a deeper level and communicate news or even transmit the lyrics of its songs for its parishioners to memorize.

Assemblies available

Easy installation

Ground support

Bar and ladder truss that creates a stable
system to support your screen in various
configurations and offers flexibility in
height as well as width.

Ground support

Bar and ladder truss that creates a stable system to support your screen in various configurations and
offers flexibility in height as well as

Wall Mountable

It is the most common support and above
all the most stable considering the type of
construction where it is mounted, since it is
screwed through

Wall Mountable

It is the most common support and above all the most stable considering the type of construction where it is mounted, since it is screwed through

TRUSS SYSTEMS

Manufactured with heavy-dutyaluminum material, ideal for overhead truss system, a ceiling grid, a crane, or other support structure from above.

TRUSS SYSTEMS

Manufactured with heavy-duty aluminum
material, ideal for overhead truss system, a
ceiling grid, a crane, or other support
structure from above.

Corner protection

Highly effective

Each of its magnetic modules have an average consumption of 60W – with a max of 120W, which makes this LED video wall economical and eco-friendly. Its average weight of 18 pounds – 8 kg – makes it easily transportable and manipulable, in addition it has a useful life of 100,000 hours. Furthermore, the final price of the package includes spare parts, compounding this package’s utility and practicality.

Corner protection

Highly effective

PACKAGE INCLUDES

(1) VIDEO PROCESSOR NovaStar Mi 1000 WITH HDMI, DVI AND VGA INPUTS

(28) NovaStar P3.91mm Indoor LED video tiles

(28) LOCKING POWER LINK CABLES

(7) HANGING BARS FOR RIGGING

(1) Cat6 25ft cable

(3) LOCKING POWER TO EDISON LINK CABLES

(28) Data Cat6 link cables

SPARE PARTS INCLUDED

PACKAGE INCLUDES

(1) VIDEO PROCESSOR NovaStar Mi 1000 WITH HDMI, DVI AND VGA INPUTS

(28) NovaStar P3.91mm Indoor LED video tiles

(28) LOCKING POWER LINK CABLES

(7) HANGING BARS FOR RIGGING

(1) Cat6 25ft cable

(3) LOCKING POWER TO EDISON LINK CABLES

SPARE PARTS INCLUDED

(28) Data Cat6 link cables

Superior services

This package, like the ones before it, offers shipping to all states of the USA, with cost factored into the final price. The after-sales technical service can be accessed at any time by telephone, which is available 24/7. Make sure to ask about our installation services!

TECHNICAL SPECIFICATIONS

KEY FEATURES:

Full Front Service / Magnetic Modules
Turn-key solution
Easy installation
Ground support compatible (sold separately here)
Download full specifications here
Technical support available
3-year warranty included for all parts
USA based
In stock

PACKAGE INCLUDES:

(28) NovaStar P3.91mm Indoor LED video tiles
(1) Video Processor with HDMI, DVI and VGA Inputs
(7) Hanging bars for rigging
(1) Cat6 25ft cable
(28) Data Cat6 link cables
(28) Locking Power Link Cables
(3) Locking Power to Edison Cables
Spare parts included

CONTROL SYSTEM:

Control Mode: NovaStar Synchronous System with Control via DVI
Frame Update Frequency: 50-60Hz
Scan Mode: 1/16
Refresh Rate: 3840Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Brightness Correction: Pixel, Module, Cabinet

SPECS:

Pixel Pitch: 3.91mm
Full Front Service / Magnetic Modules
LED Configuration: 3-in-1 SMD2020 LED
Pixel Density: 128 x 128 per panel
Size:19.68” x 19.68” x 3” / 500 x 500 x 75mm
Module Quantity: 4 per panel 250 x 250mm
Weight: 18lbs. / 8.16Kg

OPTICAL RATINGS:

Brightness: 700 NITS
View Angle: Horizontal 140°/Vertical 140°
Minimum View Distance: 15ft/4.5mts
Brightness Adjustment: 0~100% 100 Levels

ENVIRONMENTAL:

Operating Life: 100,000 Hours
Protection Level: IP45 (Front and Back)

POWER SUPPLY:

Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 120W/per panel
Ave. Power Consumption: 60W/per panel
Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Large LED Screen Display 25.2’ x 11’ P1.53mm

With the pixel pitch of 1.53mm being the smallest of our indoor line – all images transmitted on the 25.2’ x 11’ LED video wall screen will have the highest and sharpest image quality – for maximum impact on your audience. When reproducing hyper-realistic virtual environments in front of a group of impatient spectators – this package is the right choice. With the P1.53mm package, you’ll have the absolute best, premium experience with ultra high resolution, vibrant colors, and smooth motion.

Key Features:

Full Front Service / Magnetic Modules
Turn-key solution
Easy installation
Ground support compatible (sold separately here)
Technical support available
3-year warranty included for all parts
USA based
In stock

Package Includes:

(84) NovaStar P1.53mm Indoor LED video tiles
(2) NovaStar VX6S
(12) Hanging bars for rigging
(10) Cat6 25ft cable
(84) Data Cat6 link cables
(84) Locking Power Link Cables
(5) Locking Power to Edison Cables
Spare parts included

Specs:

Pixel Pitch: 1.53mm
High Refresh Rate: 3840hz
Full Front Service / Magnetic Modules
LED Configuration: 3-in-1 SMD1515 LED
Pixel Density: 416 x 312 per panel
Size: 25.2” x 18.9” x 2.9” / 640 x 480 x 75mm
Module Quantity: 6 per panel 320 x 160mm
Weight: 21.6lbs / 9.8Kg

Optical Ratings:

Brightness: 800 NITS
View Angle: Horizontal 140°/Vertical 140°
Distance: 5ft (1.5m)
Brightness Adjustment: 0~100% 100 Levels

Power Supply:

Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 140W/per panel
Ave. Power Consumption: 70W/per panel
Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

Control Mode: NovaStar Synchronous System with Control via DVI
Frame Update Frequency: 50-60Hz
Scan Mode: 1/28
Refresh Rate: 3840Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Brightness Correction: Pixel, Module, Cabinet

Environmental:

Operating Life: 100,000 Hours
Protection Level: IP45 (Front and Back)

The Mirackle® P1.53 is a high resolution video panel from Mirackle®. Each panel has a pixel pitch of 1.53mm with a configuration of a 3-in-1 RGB SMD2020 LED. These panels are specifically designed to be viewed at a close distance. Ideal for tv studios, virtual productions and even domestic use. This line of panels will definitely upgrade any presentation, event or video production.

Mirackle® offers full packages and turn-key solutions by giving you everything you need to get up and running. This package comes with video processors, software, cabling, rigging bars and flight cases.

Standard LED Screen Display 8.2′ x 5′ P3.91mm

In the category of P3.91mm LED screens for indoor use, this LED video wall which contains 15 panels is the smallest of the line. With a 5-by-3 tile format, this product is made up of magnetic modules which combine perfect brightness via the fine size of its pixels, providing color uniformity and reliability. Versatile high tech With a 5: 3 aspect ratio, the 8.2 ‘x 5’ P3.91mm Indoor LED Video Wall Screen has a 3.91mm pixel pitch which allows for optimal viewing from 8 feet away, or approximately 2.4 meters, which makes it perfect for small salons. Churches or small houses of worship, which are not so interested in stunning visual impact but more invested in deepening the bond with their followers, will benefit from this LED video wall – as it is ideal to complement all types of ceremonies, events or services. Maximum savings and practicality Its low power consumption of 60 W per panel – and its long service life, with more than 100,000 hours of guaranteed operation, make this screen extremely economical and very profitable. In addition, its total weight is 16 pounds, just over 8 Kg, which makes it light and easy to transport. Also, in addition to being compatible with ground support, it can be easily manipulated & handled. The best sales and after-sales service With free shipping to all states in the country, this package is turn-key, so the product and processing system is delivered ready to be used. In addition to including spare parts, the after-sales telephone service works every day of the year, 24 hours a day. Make sure to ask about our installation services! Download full specifications here Key Features:

Full Front Service / Magnetic Modules
Turn-key solution
Easy installation
Ground support compatible (sold separately here)
Technical support available
3-year warranty included for all parts
USA based
In stock

Package Includes:

(15) NovaStar P3.91mm Indoor LED video tiles
(1) Video Processor with HDMI, DVI and VGA Inputs
(1) NovaStar Mctrl300 sending card
(3) Hanging bars for rigging
(1) Cat6 25ft cable
(15) Data Cat6 link cables
(15) Locking Power Link Cables
(1) Locking Power to Edison Cables
Spare parts included

Specs:

Pixel Pitch: 3.91mm
Full Front Service / Magnetic Modules
LED Configuration: 3-in-1 SMD2121 LED
Pixel Density: 128 x 128 per panel
Size:19.68” x 19.68” x 3” / 500 x 500 x 75mm
Module Quantity: 4 per panel 250 x 250mm
Weight: 18lbs. / 8.16Kg

Optical Ratings:

Brightness: 1500 NITS
View Angle: Horizontal 140°/Vertical 140°
Distance: 8ft.
Brightness Adjustment: 0~100% 100 Levels

Power Supply:

Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 120W/per panel
Ave. Power Consumption: 60W/per panel
Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

Control Mode: NovaStar Synchronous System with Control via DVI
Frame Update Frequency: 50-60Hz
Scan Mode: 1/16
Refresh Rate: 3840Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Brightness Correction: Pixel, Module, Cabinet

Environmental:

Operating Life: 100,000 Hours
Protection Level: IP45 (Front and Back)

Standard LED Screen Display 11.5′ x 6.6′ P3.91mm

This LED screen is made up of 28 tiles, granting a wider surface area than its previous model, achieving an aspect ratio of 7:4. Its multiple and varied utility, as well as its benefits, make it a great technological solution when it comes to communicating a message effectively. Maximum visual impact By generating great impact, the Indoor LED Video Wall Screen 11.5 ‘x 6.6’ P3.91mm enhances the user’s experience colors, motion and sharp image quality, which is why it is so attractive for all types of companies. Its distance between pixels is 3.91mm, which stipulates that the public must be located at 8 feet for optimal viewing, this requirement is important to take into account when considering the available space. This LED screen is ideal for a church that wants to improve its congregation’s experience with high technology which will help engage the audience on a deeper level and communicate news or even transmit the lyrics of its songs for its parishioners to memorize. Highly effective Each of its magnetic modules have an average consumption of 60W – with a max of 120W, which makes this LED video wall economical and eco-friendly. Its average weight of 18 pounds – 8 kg – makes it easily transportable and manipulable, in addition it has a useful life of 100,000 hours. Furthermore, the final price of the package includes spare parts, compounding this package’s utility and practicality. Superior services This package, like the ones before it, offers shipping to all states of the USA, with cost factored into the final price. The after-sales technical service can be accessed at any time by telephone, which is available 24/7. Make sure to ask about our installation services! Download full specifications here Key Features:

Full Front Service / Magnetic Modules
Turn-key solution
Easy installation
Ground support compatible (sold separately here)
Technical support available
3-year warranty included for all parts
USA based
In stock

Package Includes:

(28) NovaStar P3.91mm Indoor LED video tiles
(1) Video Processor with HDMI, DVI and VGA Inputs
(1) NovaStar Mctrl300 sending card
(3) Hanging bars for rigging
(1) Cat6 25ft cable
(28) Data Cat6 link cables
(28) Locking Power Link Cables
(2) Locking Power to Edison Cables
Spare parts included

Specs:

Pixel Pitch: 3.91mm
Full Front Service / Magnetic Modules
LED Configuration: 3-in-1 SMD2121 LED
Pixel Density: 128 x 128 per panel
Size:19.68” x 19.68” x 3” / 500 x 500 x 75mm
Module Quantity: 4 per panel 250 x 250mm
Weight: 18lbs. / 8.16Kg

Optical Ratings:

Brightness: 1500 NITS
View Angle: Horizontal 140°/Vertical 140°
Distance: 8ft.
Brightness Adjustment: 0~100% 100 Levels

Power Supply:

Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 120W/per panel
Ave. Power Consumption: 60W/per panel
Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

Control Mode: NovaStar Synchronous System with Control via DVI
Frame Update Frequency: 50-60Hz
Scan Mode: 1/16
Refresh Rate: 3840Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Brightness Correction: Pixel, Module, Cabinet

Environmental:

Operating Life: 100,000 Hours
Protection Level: IP45 (Front and Back)

Dimensions	11.5 in
