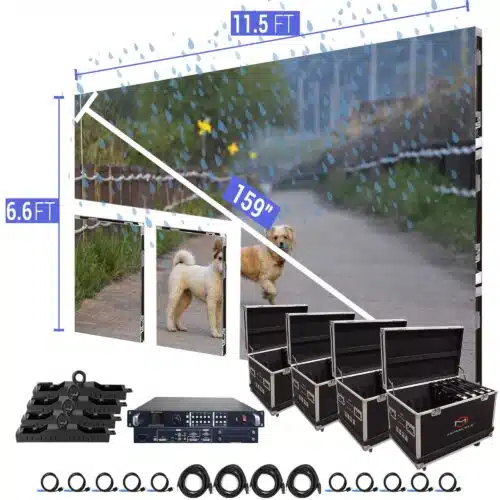

With 14 7×2 tiles, the 11.5 ′ x 6.6 ′ P3.91mm outdoor double led video wall screen is a great solution for advertising walls, business meetings or religious centers where large numbers of believers gather. The aspect ratio of the pixel of the screen to the public is 7: 4, giving it an optimal visual reception.
With 14 7×2 tiles, the 11.5 ′ x 6.6 ′ P3.91mm outdoor double led video wall screen is a great solution for advertising walls, business meetings or religious centers where large numbers of believers gather. The aspect ratio of the pixel of the screen to the public is 7: 4, giving it an optimal visual reception.
VIEW DISTANCE
RECEIVING CARD
MRV208-1 NovaStar 3840 Hz
By NovaStar, single MRV208-1
supports resolutions up to
256×256@60Hz. Supporting various
functions, can significantly improve
the display effect and user experience.
Full front serviceable
Easily removable
magnetic module system
To simplify assembly, repair or
replacement of components.
They can be removed with a special
tool or manually of components.
Easily removable
magnetic module system
To simplify assembly, repair or replacement of.
They can be removed with a special tool or manually of components.
The perfect measurements for the ideal results
The configuration of this led is SMD1820/1921, therefore the light emitting diode of the product has a rectangular shape and is divided into 3 cells; It also contains 8 modules per panel and the pixel density for each one of them is 128 x 256 and the size measures 500 x 1000 mm. Thus, it is the most profitable when looking for strategic measures for the audiovisual transmission of advertising campaigns or Eucharistic sermons.
Assemblies available
Ground support
Bar and ladder truss that creates a stable
system to support your screen in various
configurations and offers flexibility in
height as well as width.
Ground support
Bar and ladder truss that creates a stable system to support your screen in various configurations and
offers flexibility in height as well as
Wall Mountable
It is the most common support and above
all the most stable considering the type of
construction where it is mounted, since it is
screwed through
Wall Mountable
It is the most common support and above all the most stable considering the type of construction where it is mounted, since it is screwed through
TRUSS SYSTEMS
Manufactured with heavy-dutyaluminum material, ideal for overhead truss system, a ceiling grid, a crane, or other support structure from above.
TRUSS SYSTEMS
Manufactured with heavy-duty aluminum
material, ideal for overhead truss system, a
ceiling grid, a crane, or other support
structure from above.
Corner protection
Distance makes the difference
Although this article is designed for a distance of the pixel with the observer of 15 feet, the strategic viewing angles of the product have an uptake of 140º from the vertical and horizontal side, therefore the information to be transmitted will not go unnoticed under any circumstances. No, It doesn’t matter if it’s day or night, adjusting from 0 to 100% brightness will fix it right away.
Corner protection
Distance makes the difference
Although this article is designed for a distance of the pixel with the observer of 15 feet, the strategic viewing angles of the product have an uptake of 140º from the vertical and horizontal side, therefore the information to be transmitted will not go unnoticed under any circumstances. No, It doesn’t matter if it’s day or night, adjusting from 0 to 100% brightness will fix it right away.
PACKAGE INCLUDES
PACKAGE INCLUDES
The whole package
This product, in addition to integrating a warranty for a period of 3 years, offers the delivery of the led to the door of the home, the installation of the same and the technical service available at all times.
TECHNICAL SPECIFICATIONS
(14) NovaStar P3.91mm Outdoor LED video tiles
(1) Video Processor with HDMI, DVI and VGA Inputs
(7) Hanging bars for rigging
(1) Cat6 25ft cable
(14) Data Cat6 link cables
(14) Locking Power Link Cables
(3) Locking Power to Edison Cables
Spare parts included
Control Mode: NovaStar Synchronous System with Control via DVI
Frame Update Frequency: 60Hz
Scan Mode: 1/16
Refresh Rate: 3840Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Brightness Correction: Pixel, Module, Cabinet
Pixel Pitch: 3.91mm
IP65
LED Configuration: 3-in-1 SMD 1820/1921 LED
Pixel Density: 128 x 256 per panel
Size: 19.7” x 39.4” x 3” / 500 x 1000 x 75mm
Module Quantity: 8 per panel 250 x 250mm
Weight: 32lbs. / 14.5Kg
Brightness: 4500 NITS
View Angle: Horizontal 140°/Vertical 140°
Distance: 15ft (4.5m)
Brightness Adjustment: 0~100% 100 Levels
Operating Life: 100,000 Hours
Protection Level: IP65 (Front and Back)
Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 260W/per panel
Ave. Power Consumption: 130W/per panel
Connections Power/Data: Locking power In/Out; Data EtherCon In/Out
Large LED Screen Display 25.2’ x 11’ P1.53mm
With the pixel pitch of 1.53mm being the smallest of our indoor line – all images transmitted on the 25.2’ x 11’ LED video wall screen will have the highest and sharpest image quality – for maximum impact on your audience. When reproducing hyper-realistic virtual environments in front of a group of impatient spectators – this package is the right choice. With the P1.53mm package, you’ll have the absolute best, premium experience with ultra high resolution, vibrant colors, and smooth motion.
Key Features:
- Full Front Service / Magnetic Modules
- Turn-key solution
- Easy installation
- Ground support compatible (sold separately here)
- Technical support available
- 3-year warranty included for all parts
- USA based
- In stock
Package Includes:
- (84) NovaStar P1.53mm Indoor LED video tiles
- (2) NovaStar VX6S
- (12) Hanging bars for rigging
- (10) Cat6 25ft cable
- (84) Data Cat6 link cables
- (84) Locking Power Link Cables
- (5) Locking Power to Edison Cables
- Spare parts included
Specs:
- Pixel Pitch: 1.53mm
- High Refresh Rate: 3840hz
- Full Front Service / Magnetic Modules
- LED Configuration: 3-in-1 SMD1515 LED
- Pixel Density: 416 x 312 per panel
- Size: 25.2” x 18.9” x 2.9” / 640 x 480 x 75mm
- Module Quantity: 6 per panel 320 x 160mm
- Weight: 21.6lbs / 9.8Kg
Optical Ratings:
- Brightness: 800 NITS
- View Angle: Horizontal 140°/Vertical 140°
- Distance: 5ft (1.5m)
- Brightness Adjustment: 0~100% 100 Levels
Power Supply:
- Operation Power: 100~240V 50-60Hz
- Max. Power Consumption: 140W/per panel
- Ave. Power Consumption: 70W/per panel
- Connections Power/Data: Locking power In/Out; Data EtherCon In/Out
Control System:
- Control Mode: NovaStar Synchronous System with Control via DVI
- Frame Update Frequency: 50-60Hz
- Scan Mode: 1/28
- Refresh Rate: 3840Hz
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Brightness Correction: Pixel, Module, Cabinet
Environmental:
- Operating Life: 100,000 Hours
- Protection Level: IP45 (Front and Back)
The Mirackle® P1.53 is a high resolution video panel from Mirackle®. Each panel has a pixel pitch of 1.53mm with a configuration of a 3-in-1 RGB SMD2020 LED. These panels are specifically designed to be viewed at a close distance. Ideal for tv studios, virtual productions and even domestic use. This line of panels will definitely upgrade any presentation, event or video production.
Mirackle® offers full packages and turn-key solutions by giving you everything you need to get up and running. This package comes with video processors, software, cabling, rigging bars and flight cases.
Big LED Screen Display 11.5′ x 6.6′ P3.91mm Outdoor 500x1000mm
With 14 7×2 tiles, the 11.5 ′ x 6.6 ′ P3.91mm outdoor double led video wall screen is a great solution for advertising walls, business meetings or religious centers where large numbers of believers gather. The aspect ratio of the pixel of the screen to the public is 7: 4, giving it an optimal visual reception. The perfect measurements for the ideal results The configuration of this led is SMD2121 3 in 1, therefore the light emitting diode of the product has a rectangular shape and is divided into 3 cells; It also contains 8 modules per panel and the pixel density for each one of them is 128 x 256 and the size measures 500 x 1000 mm. Thus, it is the most profitable when looking for strategic measures for the audiovisual transmission of advertising campaigns or Eucharistic sermons. Distance makes the difference Although this article is designed for a distance of the pixel with the observer of 10 feet, the strategic viewing angles of the product have an uptake of 140º from the vertical and horizontal side, therefore the information to be transmitted will not go unnoticed under any circumstances. No, It doesn’t matter if it’s day or night, adjusting from 0 to 100% brightness will fix it right away. The whole package This product, in addition to integrating a warranty for a period of 3 years, offers the delivery of the led to the door of the home, the installation of the same and the technical service available at all times. Download full specifications here Key Features:- IP65 – Waterproof
- Turn-key solution
- Easy installation
- Ground support compatible (sold separately here)
- Technical support available
- 3-year warranty included for all parts
- USA based
- In stock
- (14) NovaStar P3.91mm Outdoor LED video tiles
- (1) Video Processor with HDMI, DVI and VGA Inputs
- (1) NovaStar Mctrl300 sending card
- (4) Hanging bars for rigging
- (1) Cat6 25ft cable
- (14) Data Cat6 link cables
- (14) Locking Power Link Cables
- (2) Locking Power to Edison Cables
- Spare parts included
Specs:
- Pixel Pitch: 3.91mm
- IP65
- LED Configuration: 3-in-1 SMD2121 LED
- Pixel Density: 128 x 256 per panel
- Size: 19.7” x 39.4” x 3” / 500 x 1000 x 75mm
- Module Quantity: 8 per panel 250 x 250mm
- Weight: 32lbs. / 14.5Kg
- Brightness: 5500 NITS
- View Angle: Horizontal 140°/Vertical 140°
- Distance: 8ft.
- Brightness Adjustment: 0~100% 100 Levels
- Operation Power: 100~240V 50-60Hz
- Max. Power Consumption: 260W/per panel
- Ave. Power Consumption: 130W/per panel
- Connections Power/Data: Locking power In/Out; Data EtherCon In/Out
- Control Mode: NovaStar Synchronous System with Control via DVI
- Frame Update Frequency: 60Hz
- Scan Mode: 1/16
- Refresh Rate: 3840Hz
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Brightness Correction: Pixel, Module, Cabinet
- Operating Life: 100,000 Hours
- Protection Level: IP65 (Front and Back)
