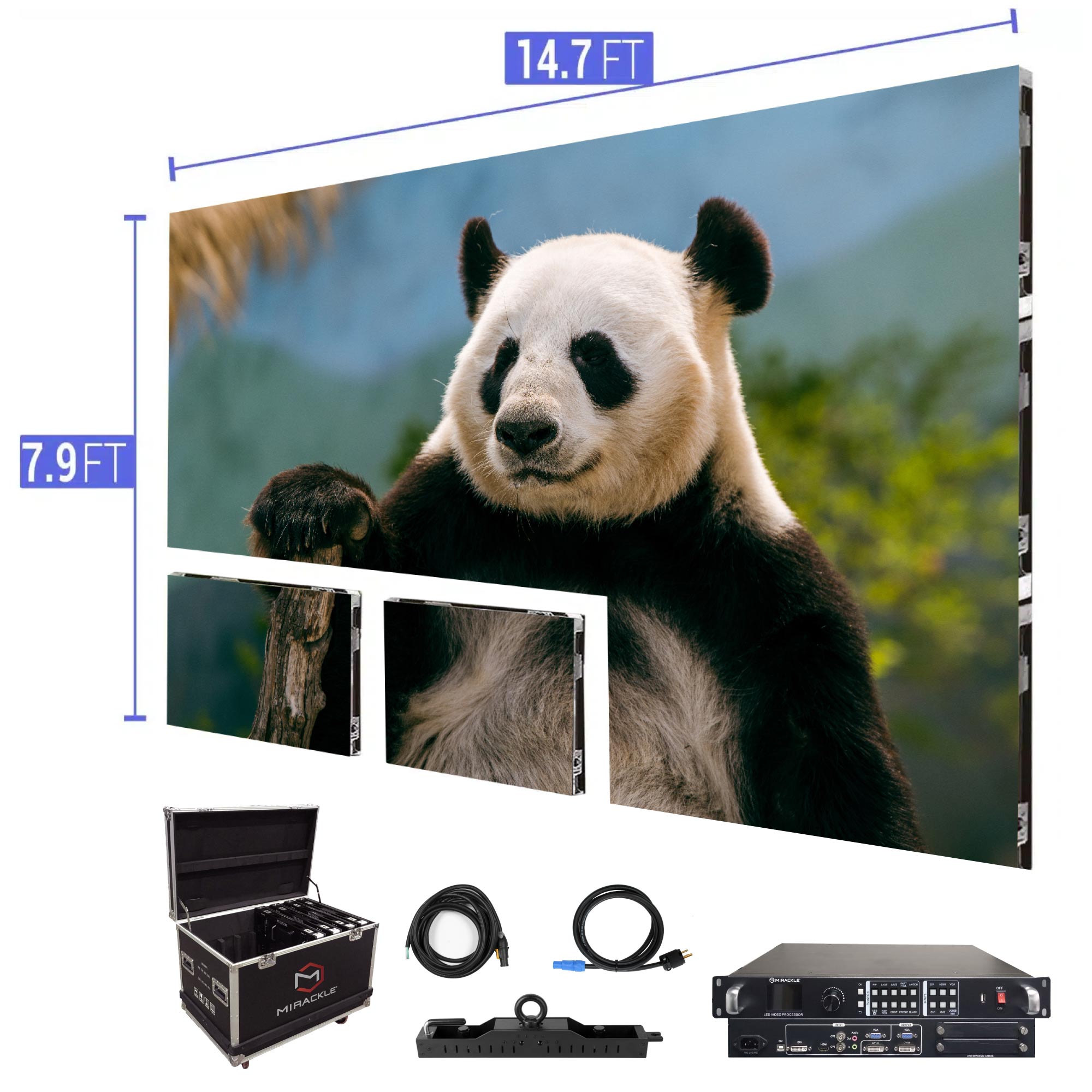

LED Video Wall Screen 14.7′ x 7.9′ P1.86mm Indoor Turn-key Virtual Productions



LED Video Wall Screen 14.7′ x 7.9′ P1.86mm Indoor Turn-key Virtual Productions

Virtual productions have a new way of generating hyper-realistic environments, to deliver perfect cinematic experiences from start to finish – thanks to our innovative technology. Thus, the 14.7’ x 7.9’ LED wall screen has arrived on the market. Its pixel pitch is P1.86mm respectively. Such a pixel pitch grants you incredibly high resolution at close viewing distances. This P1.86mm package is a choice LED turn-key package. If you want peak performance, impactful visuals and a memorable experience – this package is the one for you.

Download full specifications here
Key Features:

  • Full Front Service / Magnetic Modules
  • Turn-key solution
  • Easy installation
  • Ground support compatible (sold separately)
  • Technical support available
  • 24 month warranty included for all parts
  • USA based
  • In stock

Package Includes:

  • (35) Mirackle® NovaStar P1.86mm Indoor LED video tiles
  • (1) VX600 4k Video Processor with HDMI, DVI and VGA Inputs
  • (3) NovaStar Mctrl300 sending card
  • (7) Hanging bars for rigging
  • (5) Cat6 25ft cable
  • (35) Data Cat6 link cables
  • (35) Locking Power Link Cables
  • (2) Locking Power to Edison Cables
  • Spare parts included


  • Pixel Pitch: 1.86mm
  • High Refresh Rate: 3840hz
  • Full Front Service / Magnetic Modules
  • LED Configuration: 3-in-1 SMD1515 LED
  • Pixel Density: 342 x 256 per panel
  • Size: 25.2” x 18.9” x 3” / 640 x 480 x 75mm
  • Module Quantity: 6 per panel 320 x 160mm
  • Weight: 21.6lbs / 9.8Kg

Optical Ratings:

  • Brightness: 800 NITS
  • View Angle: Horizontal 160°/Vertical 160°
  • Distance: 5ft. / 1.5m
  • Brightness Adjustment: 0~100% 100 Levels

Power Supply:

  • Operation Power: 100~240V 50-60Hz
  • Max. Power Consumption: 200W/per panel
  • Ave. Power Consumption: 120W/per panel
  • Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

  • Control Mode: NovaStar Synchronous System with Control via DVI
  • Frame Update Frequency: 50-60Hz
  • Scan Mode: 1/40
  • Refresh Rate: 3840Hz
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
  • Brightness Correction: Pixel, Module, Cabinet


  • Operating Life: 100,000 Hours
  • Protection Level: IP45 (Front and Back)
Dimensions 14.7 in
