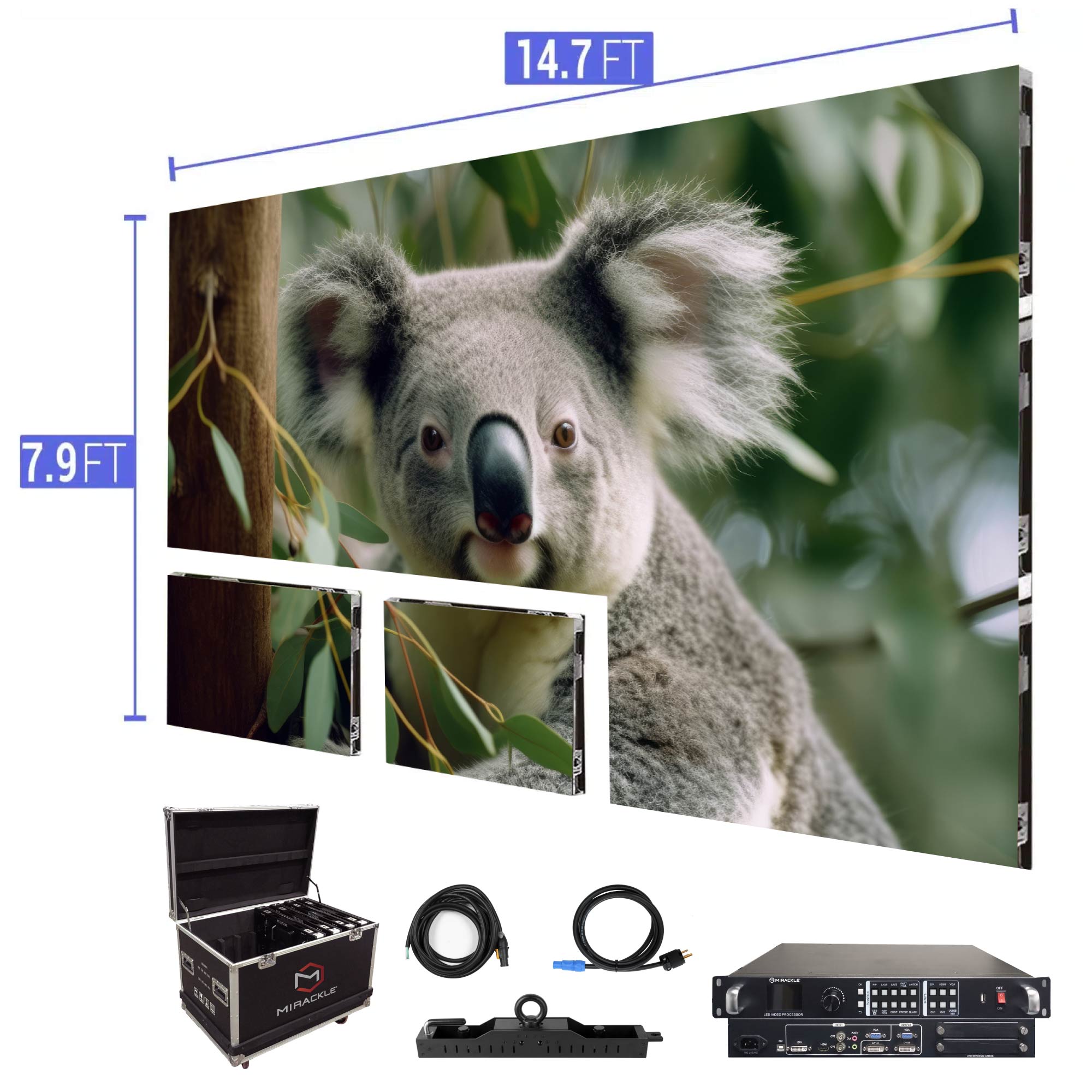

Virtual productions have a new way of generating hyper-realistic environments, to deliver perfect cinematic experiences from start to finish – thanks to our innovative technology. Thus, the 14.7’ x 7.9’ LED wall screen has arrived on the market.

Virtual productions have a new way of generating hyper-realistic environments,
to deliver perfect cinematic experiences from start to finish – thanks to our innovative technology.
Thus, the 14.7’ x 7.9’ LED wall screen has arrived on the market.

Its pixel pitch is 1.53m respectively. Such a pixel pitch grants you incredibly high resolution at close viewing distances. This P1.53mm package is a choice LED turn-key package. If you want peak performance, impactful visuals and a memorable experience – this package is the one for you.

Its pixel pitch is 1.53m respectively. Such a pixel pitch grants you incredibly high resolution
at close viewing distances. This P1.53mm package is a choice LED turn-key package. If you want
peak performance, impactful visuals and a memorable experience – this package is the one for you.

VIEW DISTANCE

RECEIVING CARD

A8s-N NovaStar 3840 Hz

By NovaStar, A8s-N supports
various functions with the highest
resolution, enhances the display
efect and user experience.

Full front serviceable

Magnetic Modules

Easily removable

magnetic module system

To simplify assembly, repair or
replacement of components.
They can be removed with a special
tool or manually of components.

Easily removable

magnetic module system

To simplify assembly, repair or replacement of.
They can be removed with a special tool or manually of components.

Versatile high tech

The Mirackle® P1.53 is a high resolution video panel from Mirackle®. Each panel has a pixel pitch of 1.53mm with a configuration of a 3-in-1 RGB SMD1212 LED. These panels are specifically designed to be viewed at a close distance. Ideal for tv studios, virtual productions and even domestic use. This line of panels will definitely upgrade any presentation, event or video production.

Assemblies available

Easy installation

Ground support

Bar and ladder truss that creates a stable
system to support your screen in various
configurations and offers flexibility in
height as well as width.

Ground support

Bar and ladder truss that creates a stable system to support your screen in various configurations and offers flexibility in height as well as

Wall Mountable

It is the most common support and above
all the most stable considering the type of
construction where it is mounted, since it is
screwed through

Wall Mountable

It is the most common support and above all the most stable considering the type of construction where it is mounted, since it is screwed through

TRUSS SYSTEMS

Manufactured with heavy-dutyaluminum material, ideal for overhead truss system, a ceiling grid, a crane, or other support structure from above.

TRUSS SYSTEMS

Manufactured with heavy-duty aluminum
material, ideal for overhead truss system, a
ceiling grid, a crane, or other support
structure from above.

Corner protection

MAXIMUM SAVINGS AND PRACTICALITY

Mirackle® offers full packages and turn-key solutions by giving you everything you need to
get up and running. This package comes with video processors, software, cabling,
rigging bars and flight cases.

Corner protection

MAXIMUM SAVINGS
AND PRACTICALITY

Mirackle® offers full packages and turn-key solutions by giving you everything you need to get up and running. This package comes with video processors, software, cabling, rigging bars and flight cases.

PACKAGE INCLUDES

(3) VIDEO PROCESSOR NovaStar VX1000 WITH HDMI, DVI AND VGA INPUTS

(35) NovaStar P1.53mm LED video tiles

(35) LOCKING POWER LINK CABLES

(12) HANGING BARS FOR RIGGING

(8) Cat6 25ft cable

(5) LOCKING POWER TO EDISON LINK CABLES

(35) Data Cat6 link cables

SPARE PARTS INCLUDED

PACKAGE INCLUDES

(3) VIDEO PROCESSOR NovaStar Vx1000 WITH HDMI, DVI AND VGA INPUTS

(35) NovaStar P1.53mm Indoor LED video tiles

(35) LOCKING POWER LINK CABLES

(7) HANGING BARS FOR RIGGING

(8) Cat6 25ft cable

(5) LOCKING POWER TO EDISON LINK CABLES

SPARE PARTS INCLUDED

(35) Data Cat6 link cables

THE BEST SALES AND
AFTER-SALES SERVICE

With free shipping to all states in the country, this package is turn-key, so the product and processing system is delivered ready to be used. Our sales and post-sales service has received a 5-star rating on all our platforms. Our website offers technical phone support, installation and maintenance services, as well as helpful videos. Make sure to ask about our installation services!

TECHNICAL SPECIFICATIONS

KEY FEATURES:

Full Front Service / Magnetic Modules
Turn-key solution
Easy installation
Ground support compatible (sold separately here)
Download full specifications here
Technical support available
3-year warranty included for all parts
USA based
In stock

PACKAGE INCLUDES:

(35) NovaStar P1.53mm Indoor LED video tiles
(1) 4k Video Processor with HDMI, DVI and VGA Inputs
(3) NovaStar Mctrl300 sending card
(7) Hanging bars for rigging
(8) Cat6 25ft cable
(35) Data Cat6 link cables
(35) Locking Power Link Cables
(5) Locking Power to Edison Cables
Spare parts included

CONTROL SYSTEM:

Control Mode: NovaStar Synchronous System with Control via DVI
Frame Update Frequency: 50-60Hz
Scan Mode: 1/28
Refresh Rate: 3840Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Brightness Correction: Pixel, Module, Cabinet

SPECS:

Pixel Pitch: 1.53mm
High Refresh Rate: 3840hz
Full Front Service / Magnetic Modules
LED Configuration:
3-in-1 SMD1212 LED
Pixel Density: 416 x 312 per panel
Size: 25.2” x 18.9” x 2.9” / 640 x 480 x 75mm
Module Quantity:
6 per panel 320 x 160mm
Weight: 21.6lbs / 9.8Kg

OPTICAL RATINGS:

Brightness: 700 NITS
View Angle: Horizontal 140°/Vertical 140°
Distance: 3ft (1m)
Brightness Adjustment: 0~100% 100 Levels

ENVIRONMENTAL:

Operating Life: 100,000 Hours
Protection Level: IP45 (Front and Back)

POWER SUPPLY:

Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 140W/per panel
Ave. Power Consumption: 70W/per panel
Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Large LED Screen Display 25.2’ x 11’ P1.53mm

With the pixel pitch of 1.53mm being the smallest of our indoor line – all images transmitted on the 25.2’ x 11’ LED video wall screen will have the highest and sharpest image quality – for maximum impact on your audience. When reproducing hyper-realistic virtual environments in front of a group of impatient spectators – this package is the right choice. With the P1.53mm package, you’ll have the absolute best, premium experience with ultra high resolution, vibrant colors, and smooth motion.

Key Features:

Full Front Service / Magnetic Modules
Turn-key solution
Easy installation
Ground support compatible (sold separately here)
Technical support available
3-year warranty included for all parts
USA based
In stock

Package Includes:

(84) NovaStar P1.53mm Indoor LED video tiles
(2) NovaStar VX6S
(12) Hanging bars for rigging
(10) Cat6 25ft cable
(84) Data Cat6 link cables
(84) Locking Power Link Cables
(5) Locking Power to Edison Cables
Spare parts included

Specs:

Pixel Pitch: 1.53mm
High Refresh Rate: 3840hz
Full Front Service / Magnetic Modules
LED Configuration: 3-in-1 SMD1515 LED
Pixel Density: 416 x 312 per panel
Size: 25.2” x 18.9” x 2.9” / 640 x 480 x 75mm
Module Quantity: 6 per panel 320 x 160mm
Weight: 21.6lbs / 9.8Kg

Optical Ratings:

Brightness: 800 NITS
View Angle: Horizontal 140°/Vertical 140°
Distance: 5ft (1.5m)
Brightness Adjustment: 0~100% 100 Levels

Power Supply:

Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 140W/per panel
Ave. Power Consumption: 70W/per panel
Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

Control Mode: NovaStar Synchronous System with Control via DVI
Frame Update Frequency: 50-60Hz
Scan Mode: 1/28
Refresh Rate: 3840Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Brightness Correction: Pixel, Module, Cabinet

Environmental:

Operating Life: 100,000 Hours
Protection Level: IP45 (Front and Back)

Mirackle® offers full packages and turn-key solutions by giving you everything you need to get up and running. This package comes with video processors, software, cabling, rigging bars and flight cases.

LED Screen Display 14.7’ x 7.9’ P1.53mm

Virtual productions have a new way of generating hyper-realistic environments, to deliver perfect cinematic experiences from start to finish – thanks to our innovative technology. Thus, the 14.7’ x 7.9’ LED wall screen has arrived on the market. Its pixel pitch is 1.53m respectively. Such a pixel pitch grants you incredibly high resolution at close viewing distances. This P1.53mm package is a choice LED turn-key package. If you want peak performance, impactful visuals and a memorable experience – this package is the one for you. Key Features:

Full Front Service / Magnetic Modules
Turn-key solution
Easy installation
Ground support compatible (sold separately here)
Technical support available
3-year warranty included for all parts
USA based
In stock

Package Includes:

(35) NovaStar P1.53mm Indoor LED video tiles
(1) 4k Video Processor with HDMI, DVI and VGA Inputs
(3) NovaStar Mctrl300 sending card
(7) Hanging bars for rigging
(5) Cat6 25ft cable
(35) Data Cat6 link cables
(35) Locking Power Link Cables
(2) Locking Power to Edison Cables
Spare parts included

Specs:

Pixel Pitch: 1.53mm
High Refresh Rate: 3840hz
Full Front Service / Magnetic Modules
LED Configuration: 3-in-1 SMD1515 LED
Pixel Density: 416 x 312 per panel
Size: 25.2” x 18.9” x 2.9” / 640 x 480 x 75mm
Module Quantity: 6 per panel 320 x 160mm
Weight: 21.6lbs / 9.8Kg

Optical Ratings:

Brightness: 800 NITS
View Angle: Horizontal 140°/Vertical 140°
Distance: 5ft (1.5m)
Brightness Adjustment: 0~100% 100 Levels

Power Supply:

Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 140W/per panel
Ave. Power Consumption: 70W/per panel
Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

Control Mode: NovaStar Synchronous System with Control via DVI
Frame Update Frequency: 50-60Hz
Scan Mode: 1/28
Refresh Rate: 3840Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Brightness Correction: Pixel, Module, Cabinet

Environmental:

Operating Life: 100,000 Hours
Protection Level: IP45 (Front and Back)

The Mirackle® P1.53 is a high resolution video panel from Mirackle®. Each panel has a pixel pitch of 1.53mm with a configuration of a 3-in-1 RGB SMD2020 LED. These panels are specifically designed to be viewed at a close distance. Ideal for tv studios, virtual productions and even domestic use. This line of panels will definitely upgrade any presentation, event or video production. Mirackle® offers full packages and turn-key solutions by giving you everything you need to get up and running. This package comes with video processors, software, cabling, rigging bars and flight cases.

Dimensions	14.7 in
Viewing distance	3 ft
