The Mirackle® is a high resolution video panel from Mirackle®. Each panel has a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2020 LED.
Mirackle® offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.

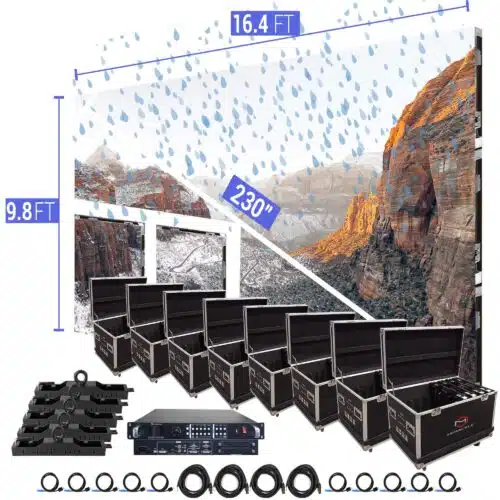

Big LED Screen Display 16.4′ x 9.8′ P3.91mm Outdoor 500x1000mm
The innovative panels for interiors most sought after on the market today are within the range of 16.4 ′ x 9.8 ′ P3.91mm video wall screens that will give you the best and sophisticated graphics for a true transmission of information to the audience. Whether on public roads, religious shrines, or rental companies, because it has a viewing distance of 10 feet and a 5: 3 aspect ratio.
The best components
This product includes 30 10×7 indoor led tiles, a video processor with Hdmi, Dvi and Vga inputs, an M3 series display control card that encodes data processing, 10 adaptable hanging bars, 2 cat6 cables 25 ft., 30 cat 6 data link cables, 3 locks to Edison cables, 30 power link cable locks, and more.
It is the ideal size
This led video of the wall screen outdoor double line has an intermediate size, almost large, where each tile has a dimension of 1000x500mm and the pixel density is 128 x 256 per panel, thus obtaining the attention of all observers at the moment to reproduce the audiovisual material to be transmitted on this large screen.
Technical service available
As part of the benefits that the customer will obtain when purchasing this LED, a 3-year warranty, the installation of the product and the technical maintenance service are included in the package at their entire disposal.
Download full specifications here
- IP65 – Waterproof
- Turn-key solution
- Easy installation
- Ground support compatible (sold separately here)
- Technical support available
- 3 years warranty included for all parts
- USA based
- In stock
- (30) NovaStar P3.91mm Outdoor LED video tiles
- (1) Video Processor with HDMI, DVI and VGA Inputs
- (1) NovaStar Mctrl300 sending card
- (10) Hanging bars for rigging
- (2) Cat6 25ft cable
- (30) Data Cat6 link cables
- (30) Locking Power Link Cables
- (3) Locking Power to Edison Cables
- Spare parts included
- Pixel Pitch: 3.91mm
- LED Configuration: 3-in-1 SMD2121 LED
- Pixel Density: 128 x 256 per panel
- Size: 19.68” x 39.3” x 3” / 500 x 1000 x 75mm
- Module Quantity: 8 per panel 250 x 250mm
- Weight: 32lbs. / 14.5Kg
- Brightness: 4500 NITS
- View Angle: Horizontal 140°/Vertical 140°
- Distance: 8ft.
- Brightness Adjustment: 0~100% 100 Levels
- Operation Power: 100~240V 50-60Hz
- Max. Power Consumption: 200W/per panel
- Ave. Power Consumption: 100W/per panel
- Connections Power/Data: Locking power In/Out; Data EtherCon In/Out
- Control Mode: NovaStar Synchronous System with Control via DVI
- Frame Update Frequency: 50-60Hz
- Scan Mode: 1/16
- Refresh Rate: 3840Hz
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Brightness Correction: Pixel, Module, Cabinet
- Operating Life: 100,000 Hours
- Protection Level: IP65 (Front and Back)
