LED Video Wall Screen 16.8′ x 9.4′ P1.53mm Indoor Turn-key Virtual Productions
$54,299.00
GET A FREE QUOTE BY COMPLETING THE FORM
Sale!

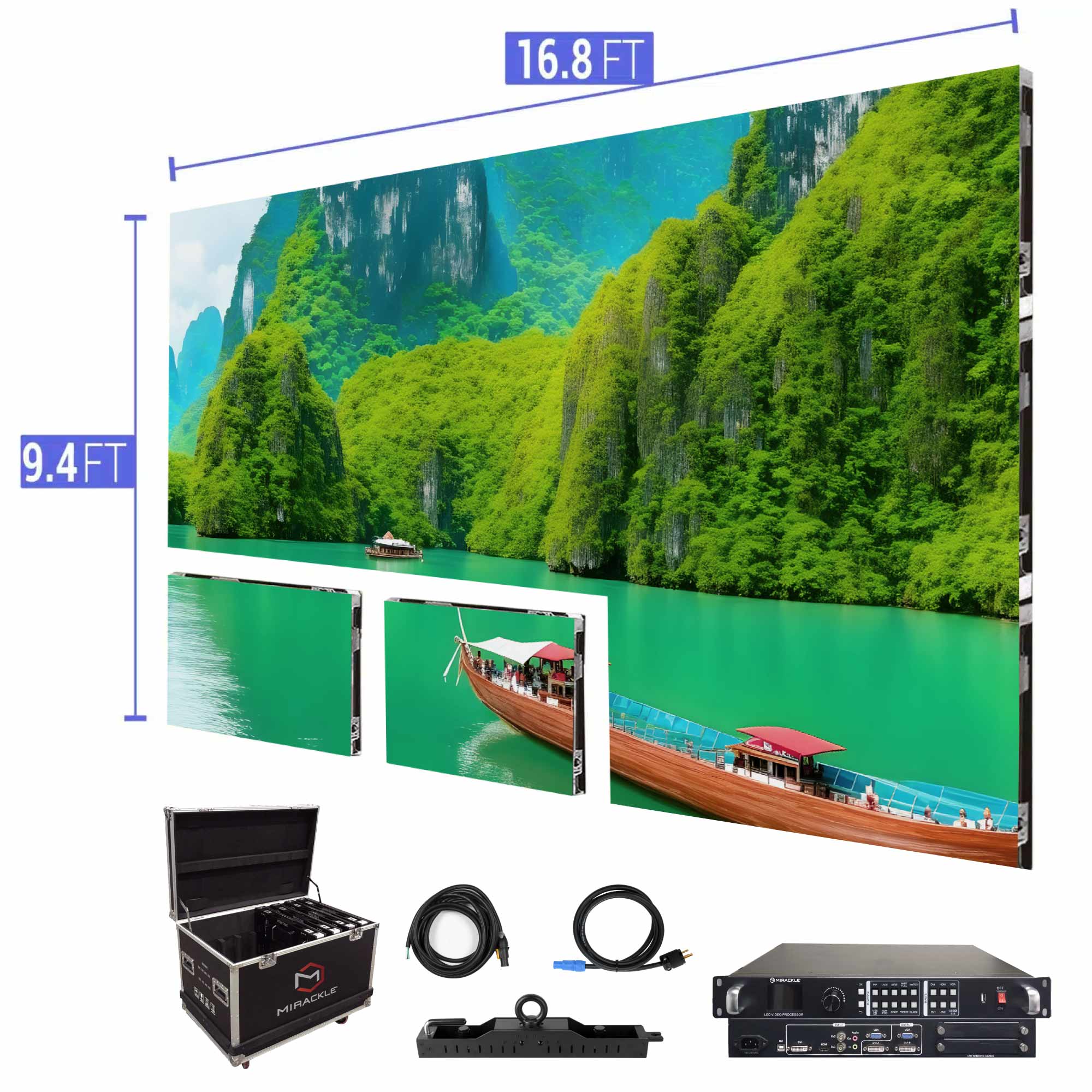

Medium LED Screen Display 16.8’ x 9.4’ P1.53mm
48 panels of 8×6 respectively are what make up the new LED video wall screen 16.8 ‘x 9.4’ of the Indoor line, having the shortest distance between pixels of 1.53mm. This product is one of the most sought after on the market, not only for its sophisticated style, but also for the versatility of the graphics it conveys. This P1.53mm package is the most premium LED turn-key package. If you want peak performance, with the highest image quality and no compromises – this package is the perfect fit.
Key Features:
- Full Front Service / Magnetic Modules
- Turn-key solution
- Easy installation
- Ground support compatible (sold separately here)
- Technical support available
- 24 month warranty included for all parts
- USA based
- In stock
Package Includes:
- (48) NovaStar P1.53mm Indoor LED video tiles
- (2) NovaStar VX4S
- (8) Hanging bars for rigging
- (6) Cat6 25ft cable
- (48) Data Cat6 link cables
- (48) Locking Power Link Cables
- (1) Locking Power to Edison Cables
- Spare parts included
Specs:
- Pixel Pitch: 1.53mm
- High Refresh Rate: 3840hz
- Full Front Service / Magnetic Modules
- LED Configuration: 3-in-1 SMD1515 LED
- Pixel Density: 416 x 312 per panel
- Size: 25.2” x 18.9” x 2.9” / 640 x 480 x 75mm
- Module Quantity: 6 per panel 320 x 160mm
- Weight: 21.6lbs / 9.8Kg
Optical Ratings:
- Brightness: 800 NITS
- View Angle: Horizontal 140°/Vertical 140°
- Distance: 5ft (1.5m)
- Brightness Adjustment: 0~100% 100 Levels
Power Supply:
- Operation Power: 100~240V 50-60Hz
- Max. Power Consumption: 140W/per panel
- Ave. Power Consumption: 70W/per panel
- Connections Power/Data: Locking power In/Out; Data EtherCon In/Out
Control System:
- Control Mode: NovaStar Synchronous System with Control via DVI
- Frame Update Frequency: 50-60Hz
- Scan Mode: 1/28
- Refresh Rate: 3840Hz
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Brightness Correction: Pixel, Module, Cabinet
Environmental:
- Operating Life: 100,000 Hours
- Protection Level: IP45 (Front and Back)
The Mirackle® P1.53 is a high resolution video panel from Mirackle®. Each panel has a pixel pitch of 1.53mm with a configuration of a 3-in-1 RGB SMD2020 LED. These panels are specifically designed to be viewed at a close distance. Ideal for tv studios, virtual productions and even domestic use. This line of panels will definitely upgrade any presentation, event or video production.
Mirackle® offers full packages and turn-key solutions by giving you everything you need to get up and running. This package comes with video processors, software, cabling, rigging bars and flight cases.
