The Mirackle® is a high resolution video panel from Mirackle®. Each panel has a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2020 LED.

Mirackle® offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.

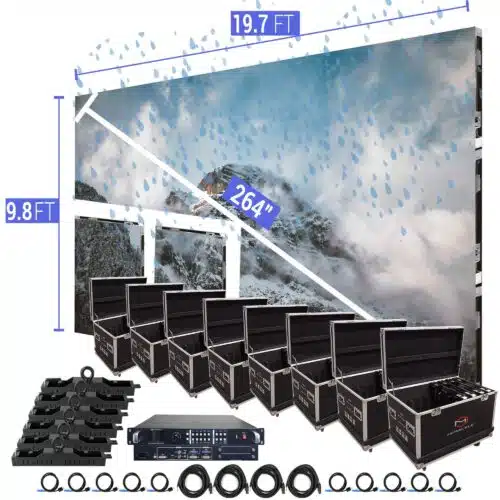

Big LED Screen Display 19.7′ x 9.8′ P3.91mm Outdoor 500x1000mm

Extensive experience and knowledge in video screens make the 19.7 ′ x 9.8 ′ P3.91mm outdoor double led wall screen a great option for audiovisual transmissions thus obtaining the best results, whether in places of worship, rental companies or the public thoroughfare, the reception will be a guaranteed success.

The perfect proportions

Since everything comes through the eyes, the large size of this product is given by its 36 video panels of 12×3 with a size of 1000x500mm, in addition the distance between pixels is 3.91 mm, being 128 x 256 density for each panel and, for a better visualization and reception of the message, the balanced panoramic ratio with respect to its aspect ratio is 2: 1, therefore the image is twice as wide as it is high.

In view of all

Once these LED screens are strategically located, everyone present, whether in the vicinity of a religious shrine or in the building of a commercial company, may be 10 feet between the resolution of the pixel and them. Therefore, the message that you want to convey through the filming that is going to be reproduced through this video panel will have a 100% reach; be it day or night, because the brightness adjustment from 0 to 100 levels will suit any occasion.

Terrestrial compatibility

Although its installation is already included in the package, the ground support comes separately and the product is delivered to the door of the home, also with a 3-year warranty that ensures the continuity of the useful life of the led.

Download full specifications here

Key Features:

  • IP65 – Waterproof
  • Turn-key solution
  • Easy installation
  • Ground support compatible (sold separately here)
  • Technical support available
  • 3 years warranty included for all parts
  • USA based
  • In stock

Package Includes:

  • (36) NovaStar P3.91mm Outdoor LED video tiles
  • (1) Video Processor with HDMI, DVI and VGA Inputs
  • (1) NovaStar Mctrl300 sending card
  • (12) Hanging bars for rigging
  • (2) Cat6 25ft cable
  • (36) Data Cat6 link cables
  • (36) Locking Power Link Cables
  • (4) Locking Power to Edison Cables
  • Spare parts included

Specs:

  • Pixel Pitch: 3.91mm
  • IP65
  • LED Configuration: 3-in-1 SMD2121 LED
  • Pixel Density: 128 x 256 per panel
  • Size: 19.68” x 39.3” x 3” / 500 x 1000 x 75mm
  • Module Quantity: 8 per panel 250 x 250mm
  • Weight: 32lbs. / 14.5Kg

Optical Ratings:

  • Brightness: 4500 NITS
  • View Angle: Horizontal 140°/Vertical 140°
  • Distance: 8ft.
  • Brightness Adjustment: 0~100% 100 Levels

Power Supply:

  • Operation Power: 100~240V 50-60Hz
  • Max. Power Consumption: 200W/per panel
  • Ave. Power Consumption: 100W/per panel
  • Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

  • Control Mode: NovaStar Synchronous System with Control via DVI
  • Frame Update Frequency: 50-60Hz
  • Scan Mode: 1/16
  • Refresh Rate: 3840Hz
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
  • Brightness Correction: Pixel, Module, Cabinet

Environmental:

  • Operating Life: 100,000 Hours
  • Protection Level: IP65 (Front and Back)
Sale!

LED Video Wall Screen 19.7' x 9.8' P3.91mm Outdoor Double Turn-key

$40,799.00

Category: ,

The Mirackle® is a high resolution video panel from Mirackle®. Each panel has a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2020 LED.

Mirackle® offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.


Big LED Screen Display 19.7′ x 9.8′ P3.91mm Outdoor 500x1000mm

Extensive experience and knowledge in video screens make the 19.7 ′ x 9.8 ′ P3.91mm outdoor double led wall screen a great option for audiovisual transmissions thus obtaining the best results, whether in places of worship, rental companies or the public thoroughfare, the reception will be a guaranteed success.

The perfect proportions

Since everything comes through the eyes, the large size of this product is given by its 36 video panels of 12×3 with a size of 1000x500mm, in addition the distance between pixels is 3.91 mm, being 128 x 256 density for each panel and, for a better visualization and reception of the message, the balanced panoramic ratio with respect to its aspect ratio is 2: 1, therefore the image is twice as wide as it is high.

In view of all

Once these LED screens are strategically located, everyone present, whether in the vicinity of a religious shrine or in the building of a commercial company, may be 10 feet between the resolution of the pixel and them. Therefore, the message that you want to convey through the filming that is going to be reproduced through this video panel will have a 100% reach; be it day or night, because the brightness adjustment from 0 to 100 levels will suit any occasion.

Terrestrial compatibility

Although its installation is already included in the package, the ground support comes separately and the product is delivered to the door of the home, also with a 3-year warranty that ensures the continuity of the useful life of the led.

Download full specifications here

Key Features:

  • IP65 – Waterproof
  • Turn-key solution
  • Easy installation
  • Ground support compatible (sold separately here)
  • Technical support available
  • 3 years warranty included for all parts
  • USA based
  • In stock

Package Includes:

  • (36) NovaStar P3.91mm Outdoor LED video tiles
  • (1) Video Processor with HDMI, DVI and VGA Inputs
  • (1) NovaStar Mctrl300 sending card
  • (12) Hanging bars for rigging
  • (2) Cat6 25ft cable
  • (36) Data Cat6 link cables
  • (36) Locking Power Link Cables
  • (4) Locking Power to Edison Cables
  • Spare parts included

Specs:

  • Pixel Pitch: 3.91mm
  • IP65
  • LED Configuration: 3-in-1 SMD2121 LED
  • Pixel Density: 128 x 256 per panel
  • Size: 19.68” x 39.3” x 3” / 500 x 1000 x 75mm
  • Module Quantity: 8 per panel 250 x 250mm
  • Weight: 32lbs. / 14.5Kg

Optical Ratings:

  • Brightness: 4500 NITS
  • View Angle: Horizontal 140°/Vertical 140°
  • Distance: 8ft.
  • Brightness Adjustment: 0~100% 100 Levels

Power Supply:

  • Operation Power: 100~240V 50-60Hz
  • Max. Power Consumption: 200W/per panel
  • Ave. Power Consumption: 100W/per panel
  • Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

  • Control Mode: NovaStar Synchronous System with Control via DVI
  • Frame Update Frequency: 50-60Hz
  • Scan Mode: 1/16
  • Refresh Rate: 3840Hz
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
  • Brightness Correction: Pixel, Module, Cabinet

Environmental:

  • Operating Life: 100,000 Hours
  • Protection Level: IP65 (Front and Back)
