The Mirackle® is a high resolution video panel from Mirackle®. Each panel has a pixel pitch of 2.97mm with a configuration of a 3-in-1 RGB SMD2020 LED.

Mirackle® offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.

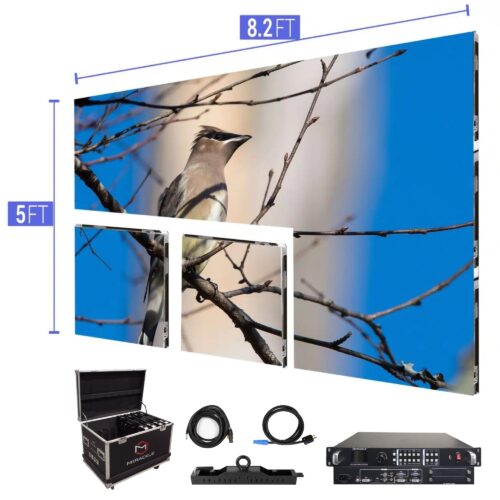

Big LED Screen Display 8.2′ x 5′ P2.97mm

This item, the smallest in the P2.97mm Indoor line, is designed for small events that are not looking for great impact but want a visual complement with high quality and the best technology. With 18 panels used to create a 5-by-3 tile led video wall, this display seamlessly combines fine pixel pitch with high resolution, plus it is a highly cost-effective product.

Superior image quality

With a 5: 3 aspect ratio, the 8.2 ′ x 5 ′ P2.97mm Indoor Led Video Wall Screen is ideal for churches and worship halls with few spatial dimensions but who are willing to offer you the best on the market in terms of technological solutions to his faithful congregation. Thanks to its 2.97mm pixel pitch, this screen allows an optimal viewing of 6 feet, approximately 3 meters. and due to its light weight of 18 pounds – just over 8 kg – it is very malleable and easily transportable.

The great solution

The benefits of having a led screen are multiple: they are effective in bringing the audience closer and transmitting a message more powerfully, all at a low cost, since its average energy consumption is 50W per panel and its useful life is 100 thousand hours, which makes them economical and thrifty. In addition, this product offers a turnkey solution, that is, it does not entail extra installation costs.

Other services included

The package has a 3-year warranty for all parts and spare parts that will serve to further extend the useful life of the led video wall. Shipping is free to all states in the country and after-sales telephone technical service is available 24 hours a day, every day of the year.

Download full specifications here

Key Features:

  • Full Front Service / Magnetic Modules
  • Turn-key solution
  • Easy installation
  • Ground support compatible (sold separately here)
  • Technical support available
  • 3 years warranty included for all parts
  • USA based
  • In stock

Package Includes:

  • (15) NovaStar P2.97mm Indoor LED video tiles
  • (1) Video Processor with HDMI, DVI and VGA Inputs
  • (1) NovaStar Mctrl300 sending card
  • (3) Hanging bars for rigging
  • (1) Cat6 25ft cable
  • (15) Data Cat6 link cables
  • (15) Locking Power Link Cables
  • (1) Locking Power to Edison Cables
  • Spare parts included

Specs:

  • Pixel Pitch: 2.97mm
  • Full Front Service / Magnetic Modules
  • LED Configuration: 3-in-1 SMD2121 LED
  • Pixel Density: 168 x 168 per panel
  • Size: 19.68” x 19.68” x 3” / 500 x 500 x 75mm
  • Module Quantity: 4 per panel 250 x 250mm
  • Weight: 18lbs. / 8.16Kg

Optical Ratings:

  • Brightness: 1500 NITS
  • View Angle: Horizontal 140°/Vertical 140°
  • Distance: 6ft.
  • Brightness Adjustment: 0~100% 100 Levels

Power Supply:

  • Operation Power: 100~240V 50-60Hz
  • Max. Power Consumption: 100W/per panel
  • Ave. Power Consumption: 50W/per panel
  • Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

  • Control Mode: NovaStar Synchronous System with Control via DVI
  • Frame Update Frequency: 50-60Hz
  • Scan Mode: 1/28
  • Refresh Rate: 3840Hz
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
  • Brightness Correction: Pixel, Module, Cabinet

Environmental:

  • Operating Life: 100,000 Hours
  • Protection Level: IP45 (Front and Back)
Sale!

LED Video Wall Screen 8.2' x 5' P2.97mm Indoor Turn-key

$9,349.00

SKU: P2971-1-1 Category: ,
