Differentiating itself from the simple line by having panels twice the size, this led wall is the smallest item within the P4.81mm Double Indoor.

Differentiating itself from the simple line by having panels twice the size, this led wall is the
smallest item within the P4.81mm Double Indoor.

It contains 12 tiles that form a 6-by-2 mosaic screen, creating a 3: 2 aspect ratio. A product that is the perfect balance between the best technology, high image quality and great profitability.

It contains 12 tiles that form a 6-by-2 mosaic screen, creating a 3: 2 aspect ratio. A product that is the perfect
balance between the best technology, high image quality and great profitability.

VIEW DISTANCE

RECEIVING CARD

MRV NovaStar 3840 Hz

By NovaStar, single MRV208-1
supports resolutions up to
256×256@60Hz. Supporting
various functions, can significantly
improve the display effect and user
user experience.

Full front serviceable

Magnetic Modules

Easily removable

magnetic module system

To simplify assembly, repair or
replacement of components.
They can be removed with a special
tool or manually of components.

Easily removable

magnetic module system

To simplify assembly, repair or replacement of.
They can be removed with a special tool or manually of components.

Versatile high tech

This screen has a ultra-fine pixel pitch which allows a minimum view distance from 20 feet away, or approximately 6 meters. They are specifically designed to large rooms. Ideal for churches and houses of worship. 140 degrees of viewing angle make this product incredibly versatile covering a wide range of possibilities.

Assemblies available

Easy installation

Ground support

Bar and ladder truss that creates a stable
system to support your screen in various
configurations and offers flexibility in
height as well as width.

Ground support

Bar and ladder truss that creates a stable system to support your screen in various configurations and
offers flexibility in height as well as

Wall Mountable

It is the most common support and above
all the most stable considering the type of
construction where it is mounted, since it is
screwed through

Wall Mountable

It is the most common support and above all the most stable considering the type of construction where it is mounted, since it is screwed through

TRUSs SYSTEMS

Manufactured with heavy-dutyaluminum material, ideal for overhead truss system, a ceiling grid, a crane, or other support structure from above.

TRUSS SYSTEMS

Manufactured with heavy-duty aluminum
material, ideal for overhead truss system, a
ceiling grid, a crane, or other support
structure from above.

Corner protection

MAXIMUM SAVINGS AND PRACTICALITY

Its long service life, with more than 100,000 hours of operation, make this screen extremely economical and very proftable. Also, in addition to being compatible with ground support, it can be easily manipulated & handled.

Corner protection

MAXIMUM SAVINGS
AND PRACTICALITY

PACKAGE INCLUDES

(1) VIDEO PROCESSOR NovaStar Mi 1000 WITH HDMI, DVI AND VGA INPUTS

(12) NovaStar P4.81mm Indoor LED video tiles

(12) LOCKING POWER LINK CABLES

(6) HANGING BARS FOR RIGGING

(1) Cat6 25ft cable

(3) LOCKING POWER TO EDISON LINK CABLES

(12) Data Cat6 link cables

SPARE PARTS INCLUDED

PACKAGE INCLUDES

(1) VIDEO PROCESSOR NovaStar Mi 1000 WITH HDMI, DVI AND VGA INPUTS

(12) NovaStar P4.81mm Indoor LED video tiles

(12) LOCKING POWER LINK CABLES

(6) HANGING BARS FOR RIGGING

(1) Cat6 25ft cable

(3) LOCKING POWER TO EDISON LINK CABLES

SPARE PARTS INCLUDED

(12) Data Cat6 link cables

THE BEST SALES AND
AFTER-SALES SERVICE

With free shipping to all states in the country, this package is turn-key, so the product and processing system is delivered ready to be used. Our sales and post-sales service has received a 5-star rating on all our platforms. Our website offers technical phone support, installation and maintenance services, as well as helpful videos. Make sure to ask about our installation services!

TECHNICAL SPECIFICATIONS

KEY FEATURES:

Full Front Service / Magnetic Modules
Turn-key solution
Easy installation
Ground support compatible
Download full specifications here
Technical support available
3-year warranty included for all parts
USA based
In stock

PACKAGE INCLUDES:

(12) Mirackle® NovaStar P4.81mm Indoor LED video tiles
(1) MI-1000 Video Processor with HDMI, DVI and VGA Inputs
(6) Hanging bars for rigging
(1) Cat6 25ft cable
(12) Data Cat6 link cables
(12) Locking Power Link Cables
(3) Locking Power to Edison Cables Spare parts included

CONTROL SYSTEM:

Control Mode: NovaStar Synchronous System with
Control via DVI
Frame Update Frequency: 50-60Hz
Scan Mode: 1/13
Refresh Rate: 3840Hz
Support Input: Composite, S-Video, Component,
VGA, DVI, HDMI, HD_SDI
Brightness Correction: Pixel, Module, Cabinet

SPECS:

Pixel Pitch: 4.81mm
High Refresh Rate: 3840hz
Full Front Service / Magnetic Modules
LED Configuration: 3-in-1 SMD2020 LED
Pixel Density: 104 x 208 per panel
Size: 25.2” x 18.9” x 2.9” / 640 x 480 x 75mm
Module Quantity: 6 per panel 320 x 160mm
Weight: 21.6lbs / 9.8Kg

OPTICAL RATINGS:

Brightness: 700 NITS
View Angle: Horizontal 140°/Vertical 140°
Distance: 20ft (6m)
Brightness Adjustment: 0~100% 100 Levels

ENVIRONMENTAL:

Operating Life: 100,000 Hours
Protection Level: IP45 (Front and Back)

POWER SUPPLY:

Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 140W/per panel
Ave. Power Consumption: 70W/per panel
Connections Power/Data: Locking power In/Out;
Data EtherCon In/Out

Large LED Screen Display 25.2’ x 11’ P1.53mm

With the pixel pitch of 1.53mm being the smallest of our indoor line – all images transmitted on the 25.2’ x 11’ LED video wall screen will have the highest and sharpest image quality – for maximum impact on your audience. When reproducing hyper-realistic virtual environments in front of a group of impatient spectators – this package is the right choice. With the P1.53mm package, you’ll have the absolute best, premium experience with ultra high resolution, vibrant colors, and smooth motion.

Key Features:

Full Front Service / Magnetic Modules
Turn-key solution
Easy installation
Ground support compatible (sold separately here)
Technical support available
3-year warranty included for all parts
USA based
In stock

Package Includes:

(84) NovaStar P1.53mm Indoor LED video tiles
(2) NovaStar VX6S
(12) Hanging bars for rigging
(10) Cat6 25ft cable
(84) Data Cat6 link cables
(84) Locking Power Link Cables
(5) Locking Power to Edison Cables
Spare parts included

Specs:

Pixel Pitch: 1.53mm
High Refresh Rate: 3840hz
Full Front Service / Magnetic Modules
LED Configuration: 3-in-1 SMD1515 LED
Pixel Density: 416 x 312 per panel
Size: 25.2” x 18.9” x 2.9” / 640 x 480 x 75mm
Module Quantity: 6 per panel 320 x 160mm
Weight: 21.6lbs / 9.8Kg

Optical Ratings:

Brightness: 800 NITS
View Angle: Horizontal 140°/Vertical 140°
Distance: 5ft (1.5m)
Brightness Adjustment: 0~100% 100 Levels

Power Supply:

Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 140W/per panel
Ave. Power Consumption: 70W/per panel
Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

Control Mode: NovaStar Synchronous System with Control via DVI
Frame Update Frequency: 50-60Hz
Scan Mode: 1/28
Refresh Rate: 3840Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Brightness Correction: Pixel, Module, Cabinet

Environmental:

Operating Life: 100,000 Hours
Protection Level: IP45 (Front and Back)

The Mirackle® P1.53 is a high resolution video panel from Mirackle®. Each panel has a pixel pitch of 1.53mm with a configuration of a 3-in-1 RGB SMD2020 LED. These panels are specifically designed to be viewed at a close distance. Ideal for tv studios, virtual productions and even domestic use. This line of panels will definitely upgrade any presentation, event or video production.

Mirackle® offers full packages and turn-key solutions by giving you everything you need to get up and running. This package comes with video processors, software, cabling, rigging bars and flight cases.

LED Video Wall Screen 26.2′ x 9.8′ P4.81mm Double Indoor Turn-key

NovaStar P4.81 Indoor Panels are the great solution for LED video wall for churches, house of worship, virtual production and rental companies. Our panels provide the optimal mix of brightness, fine pixel pitch, color uniformity, and reliability. These LED displays are great for indoor use, versatility is the key to success. LED Nation has been manufacturing Video Wall Panels for many years, we count with the experience and knowledge to create any project you have in mind. Key Features:

Full Front Service / Magnetic Modules
Turn-key solution
Easy installation
Ground support compatible (sold separately)
Technical support available
3-year warranty included for all parts
USA based
In stock

Package Includes:

(48) Mirackle® NovaStar P4.81mm Indoor LED video tiles
(1) MI-1000 Video Processor with HDMI, DVI and VGA Inputs
(2) NovaStar Mctrl300 sending card
(12) Hanging bars for rigging
(3) Cat6 25ft cable
(48) Data Cat6 link cables
(48) Locking Power Link Cables
(5) Locking Power to Edison Cables
Spare parts included

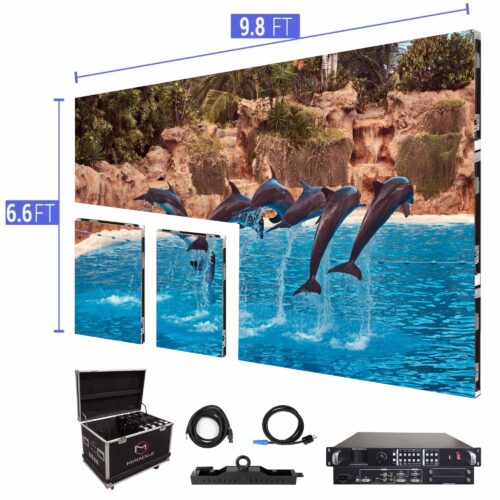

LED Video Wall Screen 9.8′ x 6.6′ P4.81mm Double Indoor Turn-key

Differentiating itself from the simple line by having panels twice the size, this led wall is the smallest item within the P4.81mm Double Indoor. It contains 12 tiles that form a 6-by-2 mosaic screen, creating a 3: 2 aspect ratio. A product that is the perfect balance between the best technology, high image quality and great profitability. Key Features:

Full Front Service / Magnetic Modules
Turn-key solution
Easy installation
Ground support compatible (sold separately)
Technical support available
3-year warranty included for all parts
USA based
In stock

Package Includes:

(12) Mirackle® NovaStar P4.81mm Indoor LED video tiles
(1) MI-1000 Video Processor with HDMI, DVI and VGA Inputs
(1) NovaStar Mctrl300 sending card
(4) Hanging bars for rigging
(1) Cat6 25ft cable
(12) Data Cat6 link cables
(12) Locking Power Link Cables (1) Locking Power to Edison Cables Spare parts included

Dimensions	9.8 in
