With 18 panels that make up a 6 by 3 tile video wall, this P2.97mm indoor product is ideal for churches and houses of worship who wish to reinforce their message of faith with clear and direct communication.

This small LED screen, which has a 2: 1 landscape aspect ratio, provides the best in technological innovation, with high image quality and incredible resolution. The P2.9mm is very flexible and adaptable to many different types of projects. It provides a more affordable option for high impact visuals at a reasonable distance.

This small LED screen, which has a 2: 1 landscape aspect ratio, provides the best in technological innovation,
with high image quality and incredible resolution. The P2.9mm is very flexible and adaptable to many different
types of projects. It provides a more affordable option for high impact visuals at a reasonable distance.

VIEW DISTANCE

RECEIVING CARD

MRV208-1 NovaStar 3840 Hz<span<

By NovaStar, single MRV208-1
supports resolutions up to
256×256@60Hz. Supporting various
functions, can significantly improve
the display effect and user experience.

Full front serviceable

Magnetic Modules

Easily removable

magnetic module system

To simplify assembly, repair or
replacement of components.
They can be removed with a special
tool or manually of components.

Easily removable

magnetic module system

To simplify assembly, repair or replacement of.
They can be removed with a special tool or manually of components.

Superior image and adaptability

Perfect to use as a complement in all types of ceremonies or events held in limited spaces, this LED Video Wall Screen 9.8′ by 5′ P2.97mm Indoor is highly adaptable to all styles of scenarios and very easy to move and transport since it’s weight is 18 lbs. Due to its fine pitch between 2.97mm pixels, it allows an optimal viewing from 6 feet away and its 140 ° horizontal and 140 ° vertical angle allows the entire audience to enjoy the perfect image it offers, with high resolution and uniformity of color.

Assemblies available

Easy installation

Ground support

Bar and ladder truss that creates a stable
system to support your screen in various
configurations and offers flexibility in
height as well as width.

Ground support

Bar and ladder truss that creates a stable system to support your screen in various configurations and
offers flexibility in height as well as

Wall Mountable

It is the most common support and above
all the most stable considering the type of
construction where it is mounted, since it is
screwed through

Wall Mountable

It is the most common support and above all the most stable considering the type of construction where it is mounted, since it is screwed through

TRUSS SYSTEMS

Manufactured with heavy-dutyaluminum material, ideal for overhead truss system, a ceiling grid, a crane, or other support structure from above.

TRUSS SYSTEMS

Manufactured with heavy-duty aluminum
material, ideal for overhead truss system, a
ceiling grid, a crane, or other support
structure from above.

Corner protection

Maximum profitability

This LED video wall is effectively a turnkey solution service, that is, it is delivered ready to be used, which avoids extra expenses and unnecessary worries. In addition, its maximum energy consumption is 100 W per panel and its operating life is 100,000 hours, so this product stands out from the others for its efficiency, low cost and profitability.

Corner protection

Maximum profitability

PACKAGE INCLUDES

(2) VIDEO PROCESSOR NovaStar Mi 1000 WITH HDMI, DVI AND VGA INPUTS

(15) NovaStar P1.53mm Indoor LED video tiles

(15) LOCKING POWER LINK CABLES

(6) HANGING BARS FOR RIGGING

(1) Cat6 25ft cable

(2) LOCKING POWER TO EDISON LINK CABLES

(15) Data Cat6 link cables

SPARE PARTS INCLUDED

PACKAGE INCLUDES

(2) VIDEO PROCESSOR NovaStar Mi 1000 WITH HDMI, DVI AND VGA INPUTS

(18) NovaStar P2.97mm Indoor LED video tiles

(18) LOCKING POWER LINK CABLES

(6) HANGING BARS FOR RIGGING

(1) Cat6 25ft cable

(2) LOCKING POWER TO EDISON LINK CABLES

SPARE PARTS INCLUDED

(18) Data Cat6 link cables

Free shipping and more

The LED screen also includes a 3-year warranty on all parts and shipping to all states in the USA. If you have any questions, you can access the technical after-sales telephone service that is available 24 hours a day, every day of the year. Make sure to ask us about our installation services!

TECHNICAL SPECIFICATIONS

KEY FEATURES:

Full Front Service / Magnetic Modules
Turn-key solution
Easy installation
Ground support compatible (sold separately here)
Download full specifications here
Technical support available
3-year warranty included for all parts
USA based
In stock

PACKAGE INCLUDES:

(18) NovaStar P2.97mm Indoor LED video tiles
(1) Video Processor with HDMI, DVI and VGA Inputs
(6) Hanging bars for rigging
(1) Cat6 25ft cable
(18) Data Cat6 link cables
(18) Locking Power Link Cables
(2) Locking Power to Edison Cables
Spare parts included

CONTROL SYSTEM:

Control Mode: NovaStar Synchronous System with Control via DVI
Frame Update Frequency: 50-60Hz
Scan Mode: 1/28
Refresh Rate: 3840Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Brightness Correction: Pixel, Module, Cabinet

SPECS:

Pixel Pitch: 2.97mm
Full Front Service / Magnetic Modules
LED Configuration: 3-in-1 SMD2020 LED
Pixel Density: 168 x 168 per panel
Size: 19.68” x 19.68” x 3” / 500 x 500 x 75mm
Module Quantity: 4 per panel 250 x 250mm
Weight: 18lbs. / 8.16Kg

OPTICAL RATINGS:

Brightness: 700 NITS
View Angle: Horizontal 140°/Vertical 140°
Distance: 10ft (3m)
Brightness Adjustment: 0~100% 100 Levels

ENVIRONMENTAL:

Operating Life: 100,000 Hours
Protection Level: IP45 (Front and Back)

POWER SUPPLY:

Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 100W/per panel
Ave. Power Consumption: 50W/per panel
Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

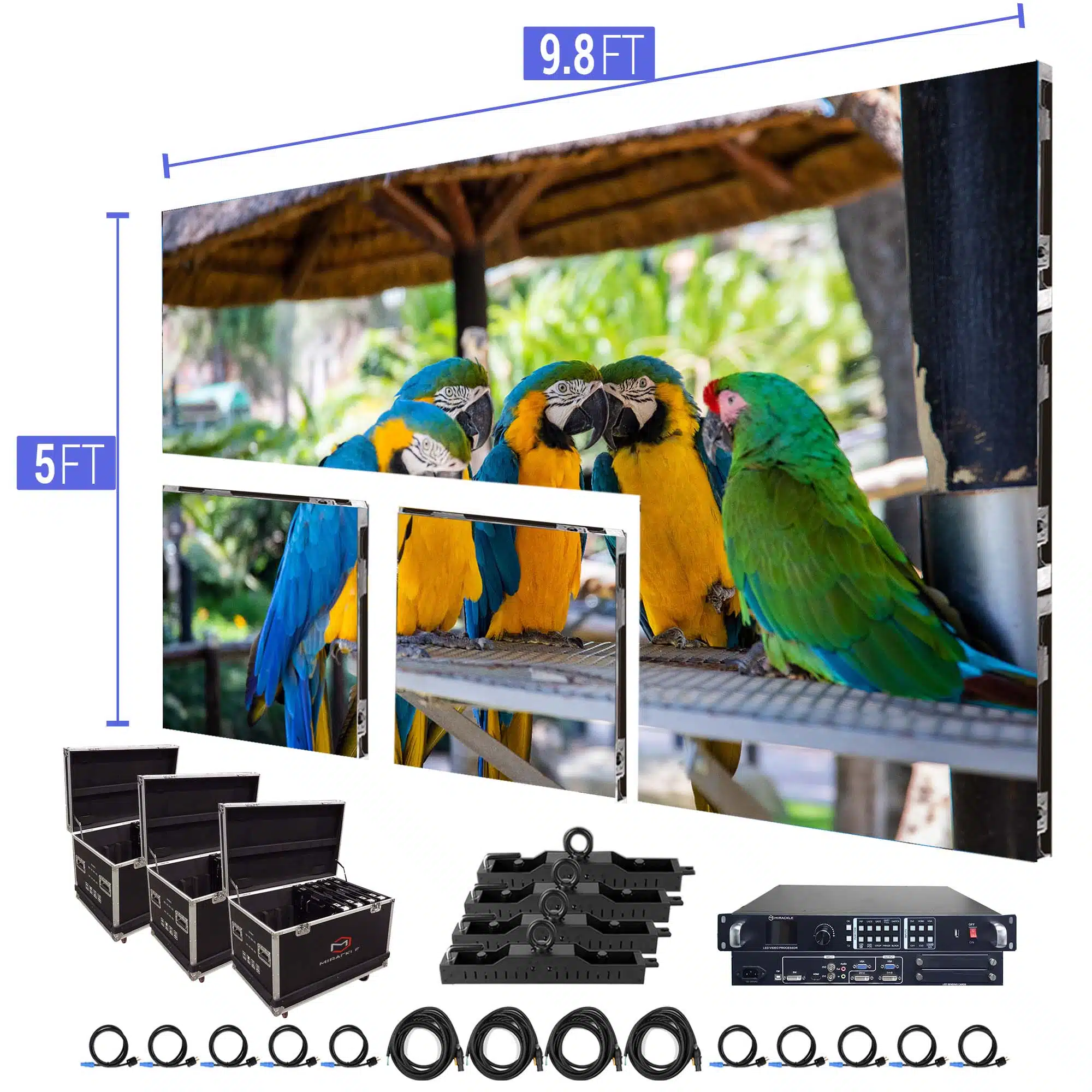

Standard LED Screen Display 9.8’ x 5’ P2.9mm

With 18 panels that make up a 6 by 3 tile video wall, this P2.97mm indoor product is ideal for churches and houses of worship who wish to reinforce their message of faith with clear and direct communication. This small LED screen, which has a 2: 1 landscape aspect ratio, provides the best in technological innovation, with high image quality and incredible resolution. The P2.9mm is very flexible and adaptable to many different types of projects. It provides a more affordable option for high impact visuals at a reasonable distance. Superior image and adaptability Perfect to use as a complement in all types of ceremonies or events held in limited spaces, this LED Video Wall Screen 9.8′ by 5′ P2.97mm Indoor is highly adaptable to all styles of scenarios and very easy to move and transport since it’s weight is 18 lbs. Due to its fine pitch between 2.97mm pixels, it allows an optimal viewing from 6 feet away and its 140 ° horizontal and 140 ° vertical angle allows the entire audience to enjoy the perfect image it offers, with high resolution and uniformity of color. Maximum profitability This LED video wall is effectively a turnkey solution service, that is, it is delivered ready to be used, which avoids extra expenses and unnecessary worries. In addition, its maximum energy consumption is 100 W per panel and its operating life is 100,000 hours, so this product stands out from the others for its efficiency, low cost and profitability. Free shipping and more The LED screen also includes a 3-year warranty on all parts and shipping to all states in the USA. If you have any questions, you can access the technical after-sales telephone service that is available 24 hours a day, every day of the year. Make sure to ask us about our installation services! Download full specifications here Key Features:

Full Front Service / Magnetic Modules
Turn-key solution
Easy installation
Ground support compatible (sold separately here)
Technical support available
3-year warranty included for all parts
USA based
In stock

Package Includes:

(18) NovaStar P2.97mm Indoor LED video tiles
(1) Video Processor with HDMI, DVI and VGA Inputs
(1) NovaStar Mctrl300 sending card
(4) Hanging bars for rigging
(1) Cat6 25ft cable
(18) Data Cat6 link cables
(18) Locking Power Link Cables
(1) Locking Power to Edison Cables
Spare parts included

Specs:

Pixel Pitch: 2.97mm
Full Front Service / Magnetic Modules
LED Configuration: 3-in-1 SMD2121 LED
Pixel Density: 168 x 168 per panel
Size: 19.68” x 19.68” x 3” / 500 x 500 x 75mm
Module Quantity: 4 per panel 250 x 250mm
Weight: 18lbs. / 8.16Kg

Optical Ratings:

Brightness: 1500 NITS
View Angle: Horizontal 140°/Vertical 140°
Distance: 6ft (2m)
Brightness Adjustment: 0~100% 100 Levels

Power Supply:

Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 100W/per panel
Ave. Power Consumption: 50W/per panel
Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

Control Mode: NovaStar Synchronous System with Control via DVI
Frame Update Frequency: 50-60Hz
Scan Mode: 1/28
Refresh Rate: 3840Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Brightness Correction: Pixel, Module, Cabinet

Environmental:

Operating Life: 100,000 Hours
Protection Level: IP45 (Front and Back)

Dimensions	9.8 in
