The Mirackle® is a high resolution video panel from Mirackle®. Each panel has a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2020 LED.

Mirackle® offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.

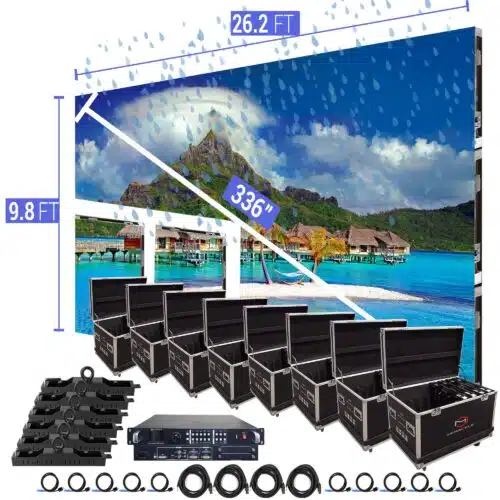

Big LED Screen Display Panels 26.2’x9.8′ P3.91mm Outdoor Double 500x1000mm

Now advertising in large outdoor spaces will be possible thanks to the new line in led video wall screen 26.2 ′ x 9.8 ′ P3.91mm outdoor double that, on this occasion, offers 48 thin 16 x3 panels of 1000x500mm and, the audiovisual material that is transmitted through this product, can be seen at only 10 feet, thus offering a warm closeness and a quick reception of the message.

Power consumption

The electrical voltage of the alternating current that this product uses is 100 to 240 volts, the wave cycle per second is 50-0 hertz; On the other hand, the average energy consumption is equivalent to the power of 200 watts for each one of the panels, with the automatic scanning mode being 1/16.

Innovative pixels

Although the proportion or aspect ratio of the pixel with respect to the height and width of the screen is 8: 3, the density of the pixels will be measured in 128 x 256 for each panel, of the 8 modules, being the luminance per square meter of 4500 Nits, which makes the 26.2 ′ x 9.8 ′ led video wall screen the most innovative on the market over the current competition.

Turn Key option

The video led is delivered already installed thanks to its hanging bars adaptable for any rigorous wall, in addition to including each and every one of the pieces, the technical maintenance service is also available to the client and, in order to secure the purchase, You will be given a warranty for the period of 3 long years.

Download full specifications here

Key Features:

  • Turn-key solution
  • IP65 – Waterproof
  • Ground support compatible (sold separately here)
  • Technical support available
  • 3 years warranty included for all parts
  • USA based
  • In stock

Package Includes:

  • (48) NovaStar P3.91mm Outdoor LED video tiles
  • (1) Video Processor with HDMI, DVI and VGA Inputs
  • (2) NovaStar Mctrl300 sending card
  • (16) Hanging bars for rigging
  • (3) Cat6 25ft cable
  • (48) Data Cat6 link cables
  • (48) Locking Power Link Cables
  • (5) Locking Power to Edison Cables
  • Spare parts included

Specs:

  • Pixel Pitch: 3.91mm
  • IP65
  • LED Configuration: 3-in-1 SMD2121 LED
  • Pixel Density: 128 x 256 per panel
  • Size: 19.68” x 39.3” x 3” / 500 x 1000 x 75mm
  • Module Quantity: 8 per panel 250 x 250mm
  • Weight: 32lbs. / 14.5Kg

Optical Ratings:

  • Brightness: 4500 NITS
  • View Angle: Horizontal 140°/Vertical 140°
  • Distance: 8ft.
  • Brightness Adjustment: 0~100% 100 Levels

Power Supply:

  • Operation Power: 100~240V 50-60Hz
  • Max. Power Consumption: 200W/per panel
  • Ave. Power Consumption: 100W/per panel
  • Connections Power/Data: Locking power In/Out; Data EtherCon In/Out

Control System:

  • Control Mode: NovaStar Synchronous System with Control via DVI
  • Frame Update Frequency: 50-60Hz
  • Scan Mode: 1/16
  • Refresh Rate: 3840Hz
  • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
  • Brightness Correction: Pixel, Module, Cabinet

Environmental:

  • Operating Life: 100,000 Hours
  • Protection Level: IP65 (Front and Back)
